Ball antennas and marking discs

Ball antennas and marking discs – precise positioning underground

Ball antennas and marking discs are designed to facilitate the marking and subsequent locating of buried cables and pipes. They transmit signals that can be received by cable and pipe locators, allowing for precise location determination without extensive excavation.

Versatile applications

🛠️ Cable and pipe installations – Allows for accurate marking of new installations for future location.
🔧 Maintenance and Service – Facilitates quick and accurate location of existing cables and pipes during maintenance and repair work.
🏗️ Infrastructure Projects – Support large construction projects by ensuring underground infrastructure is considered and protected.

Product features

🎛️ Multiple frequency options – Available in different frequencies for different marking targets, such as water, sewer, telephone, electricity and gas.
🛡️ Durable construction – Designed to withstand underground conditions such as moisture and pressure, ensuring long-term functionality.
👌 Easy installation – User-friendly design allows for quick and easy installation in various environments.
🔄 Compatibility – Works seamlessly with various cable and pipe locators, offering versatile usage options.

Summary

Ball antennas and marking discs are essential tools for the effective management of underground infrastructure. They enable the precise location of cables and pipes, improving work safety and efficiency and reducing the risk of damage during excavation work.

------

Underground Komplex marking balls and discs can be used to mark point-like objects underground, such as pipe and cable ends, manholes, connections and branches.

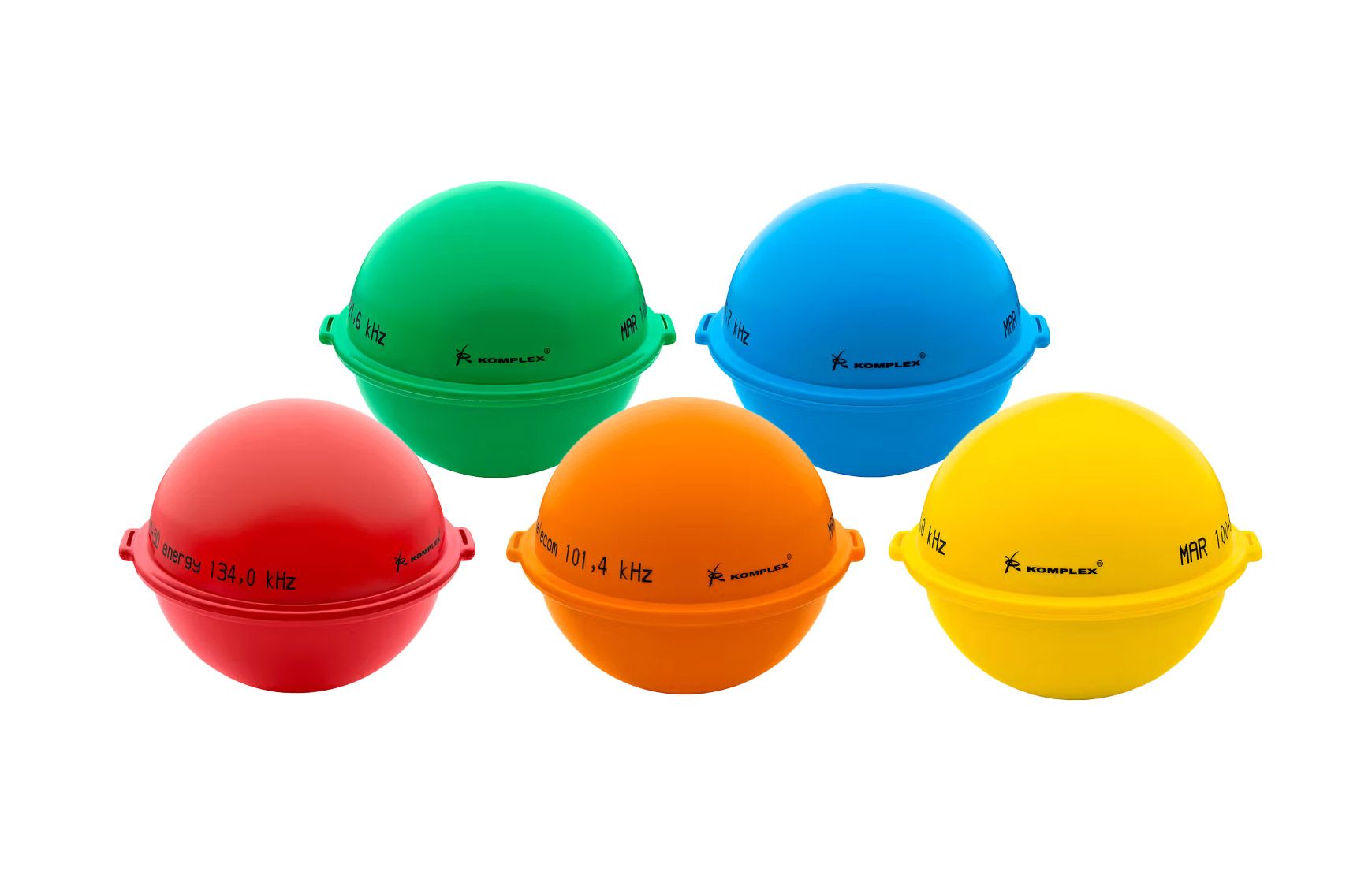

The balls can be installed in any position on the ground. The search distance varies depending on the model up to 2.5m. Available in five different frequencies depending on the marking target.

Water, sewer, telephone, electricity and gas. Each has its own marking ball, or disc. The frequencies are constant regardless of the manufacturer.

Marking discs are also available as smart discs, where each disc contains a unique ID number.

Komplex marking supplies do not contain liquids and work in all conditions. Operating life 50 years.

With the Marker Database® software, all marking balls and discs can be marked on a mobile phone during installation and more detailed information about the target can be saved in the application.

The data can be shared with other partners via the cloud service if necessary. The application can also be used to roughly locate objects and use a search device to perform precise positioning.

Marking type and operating frequency kHz

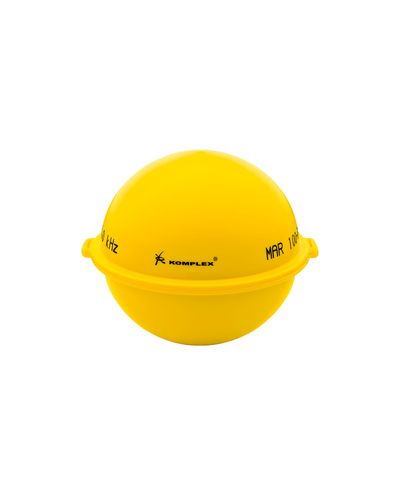

Gas 83.0

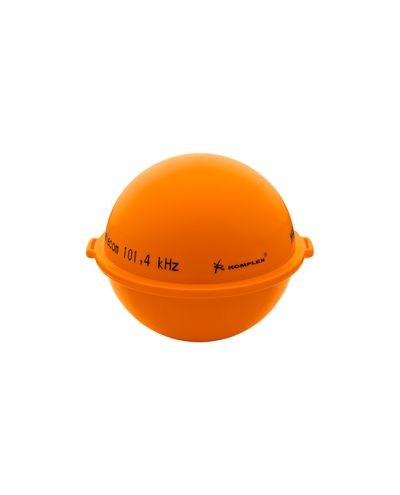

Tele 101.4
Sewer 121.6

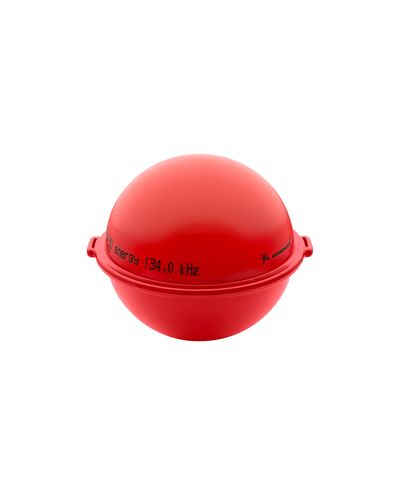

Electricity 134.0

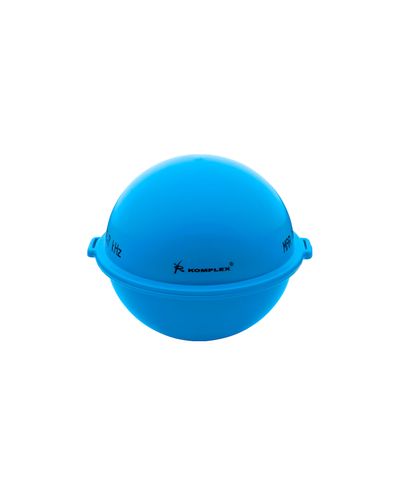

Water 145.7
