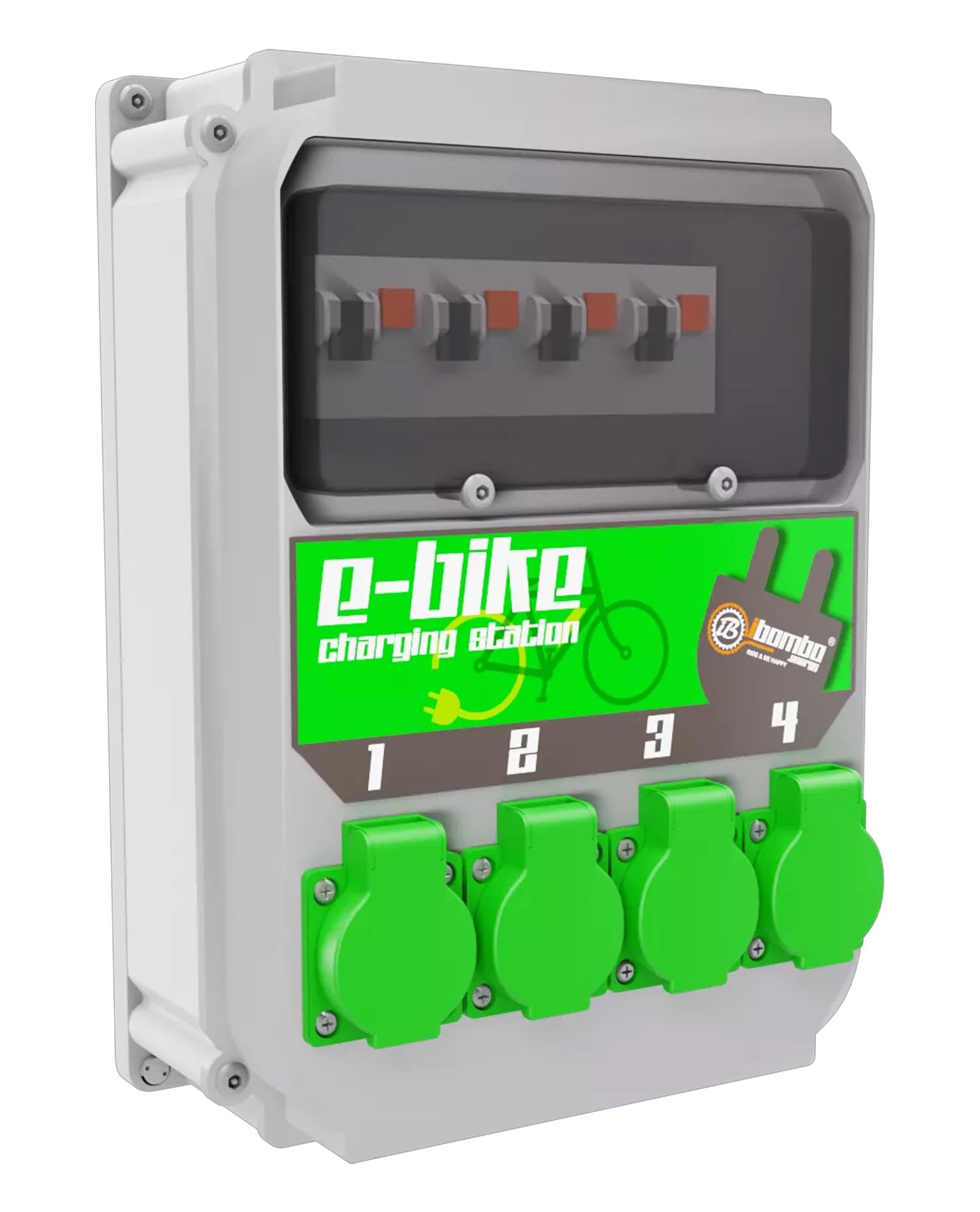

Electric bike charging point IBOMBO CeON

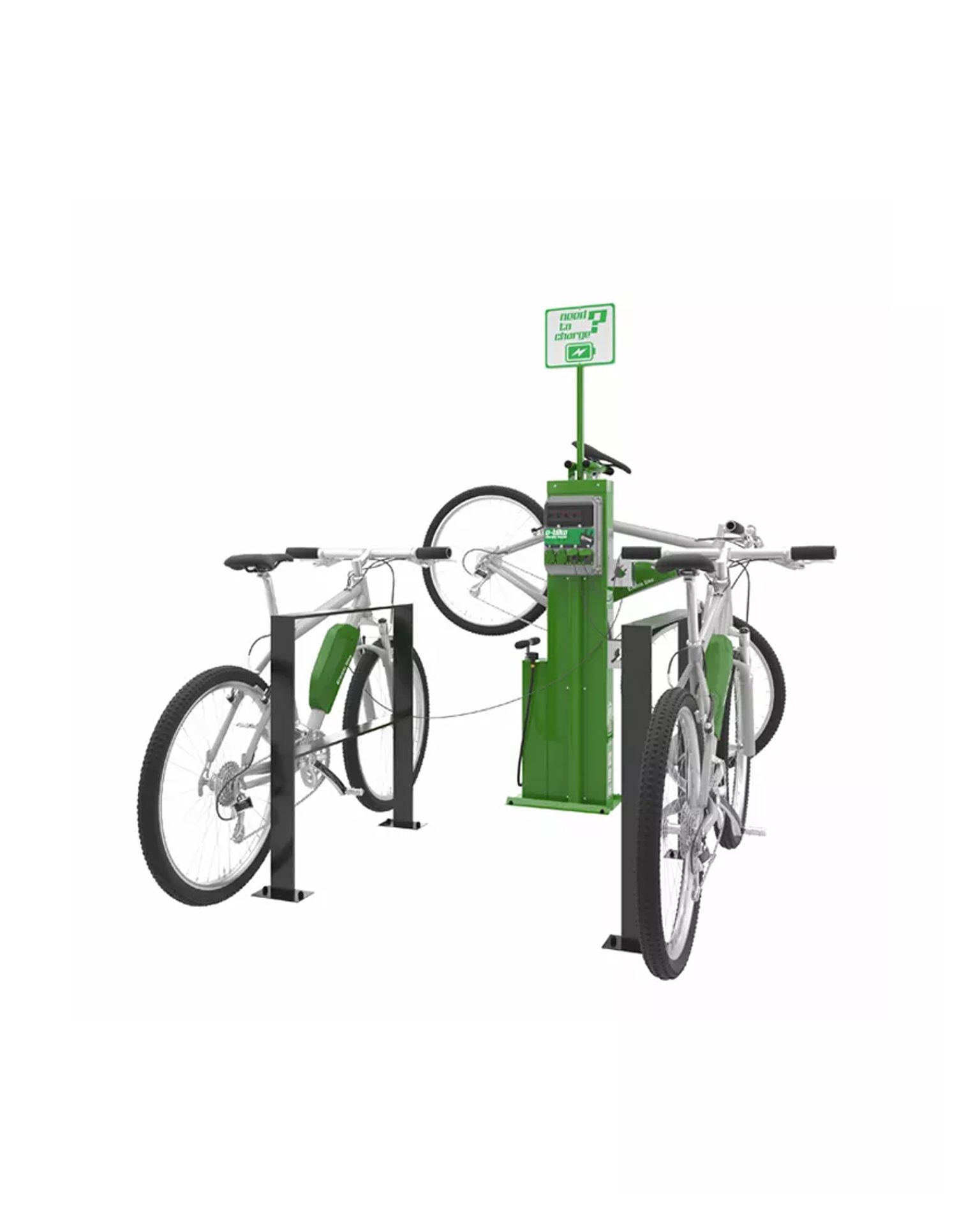

IBOMBO CeON is a professional bicycle charging station. This reliable solution enables safe management of electricity, minimizes the risk of failures and ensures smooth operation. The product can be mounted on a wall, facade, rack or IBOMBO bicycle charging station.

The charger is designed for charging electric bicycles and must not be connected to devices requiring higher power. It is suitable for use, for example, in public areas and outdoors. The module has 4 sockets, and the sensitive residual current devices meet all EU requirements regarding the use of sockets by unauthorized or inexperienced persons. The charging module and the fuses are protected by safety screws.

Main features:

1. Safety first:
   The center has a high-quality housing that protects against electrical components and dangerous short circuits.

2. Practical:
   The precise design and numerous locations for fuses and residual current devices make it easy to manage electrical installations in one place. This makes troubleshooting and maintenance faster and more efficient.

3. High-quality materials:
   The charging module is made of durable materials, which ensures a long service life and protects against mechanical damage and environmental influences.

4. Easy installation:
   The center is designed for easy and quick installation.

Specifications:

• Dimensions: 31 x 22 x 11.5 cm
• Weight: 5.5 kg
• Module: 4 x sockets (230V) for charging e-bikes
• Contact material: CuZn (brass)
• Safety type: automatic fuse
• Residual current protection: 30 mA
• Power Supply/Connection: 1 cable

• 4 charging sockets 230V/16A
• RCBO protection (6A): connected to the socket for additional protection
• Fuses protected by impact-resistant window
• Pre-wired – ready to use
• Housing made of strong, hard plastic PC/ABS material
• Water resistance class: IP54
• Installation options: wall, rack or bike service point

Compatibility with European standards:

• Directives: (RoHS) 2011/65/EU and 2015/863
• Low Voltage Directive: 2014/35/EU
• Electromagnetic Compatibility (EMC): 2014/30/EU
• Standards used: EC/EN 61439-1; IEC/EN 61439-4
