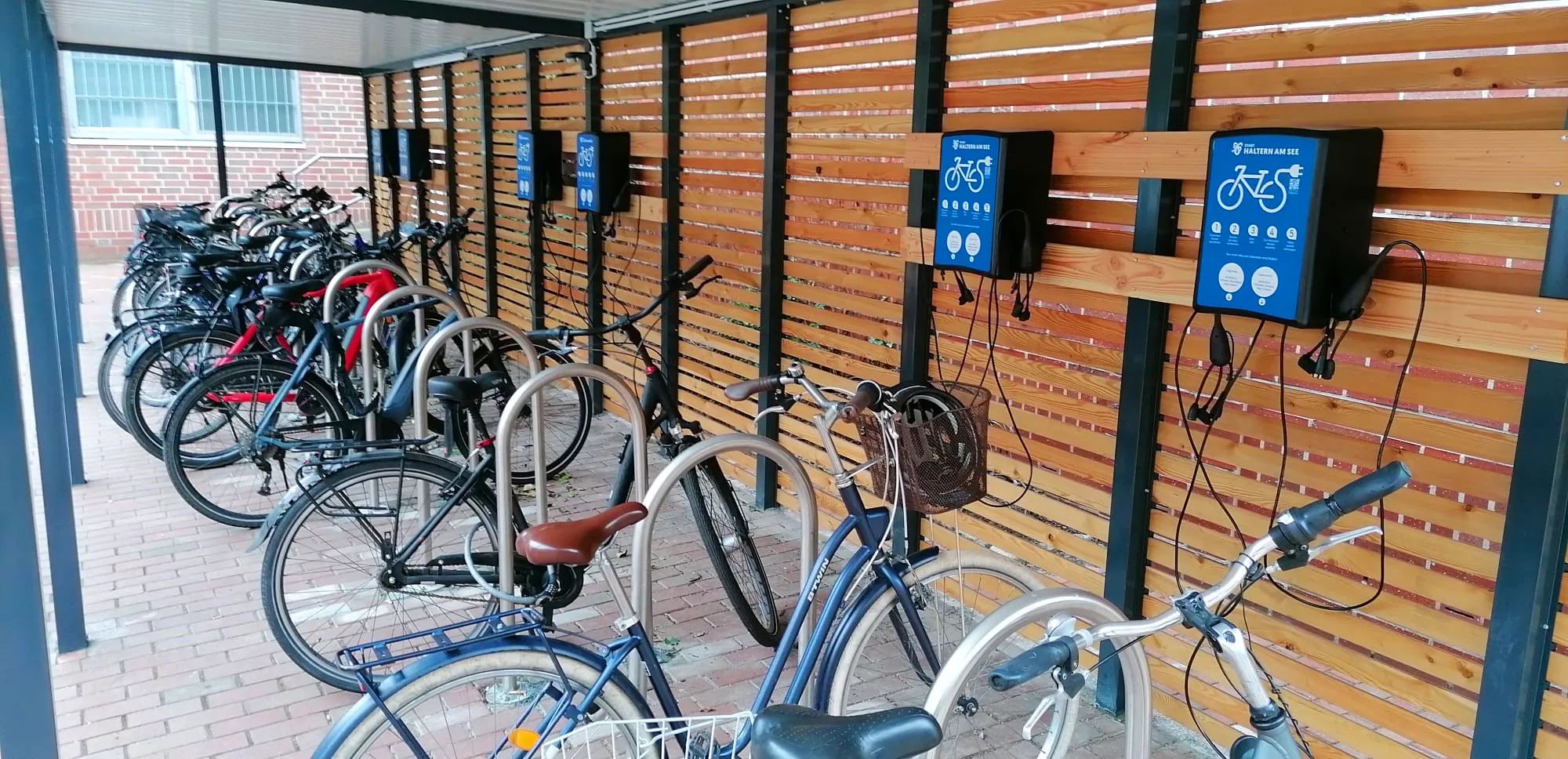

The LiON Box not only offers an attractive appearance and saves space, as it can be mounted on a wall, facade, rack or in connection with the IBOMBO PRS-E-LV2 LiON e-bike charging and service station, but also offers the best charging technology for e-bikes and scooters. These can be connected and charged directly - without separate chargers or cumbersome battery removal!
Thanks to easy installation, the LiON Box is ready to use immediately.
Two options:

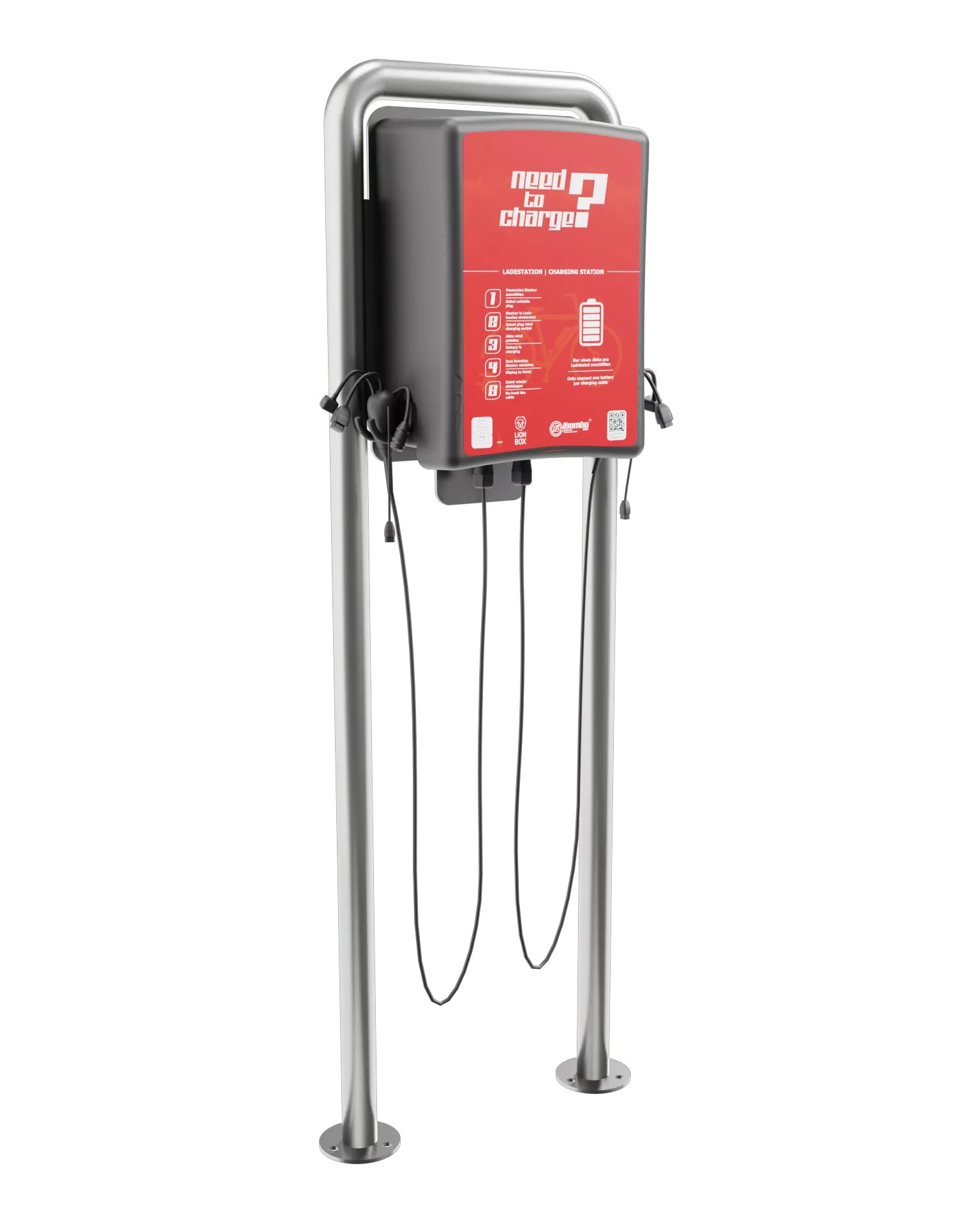

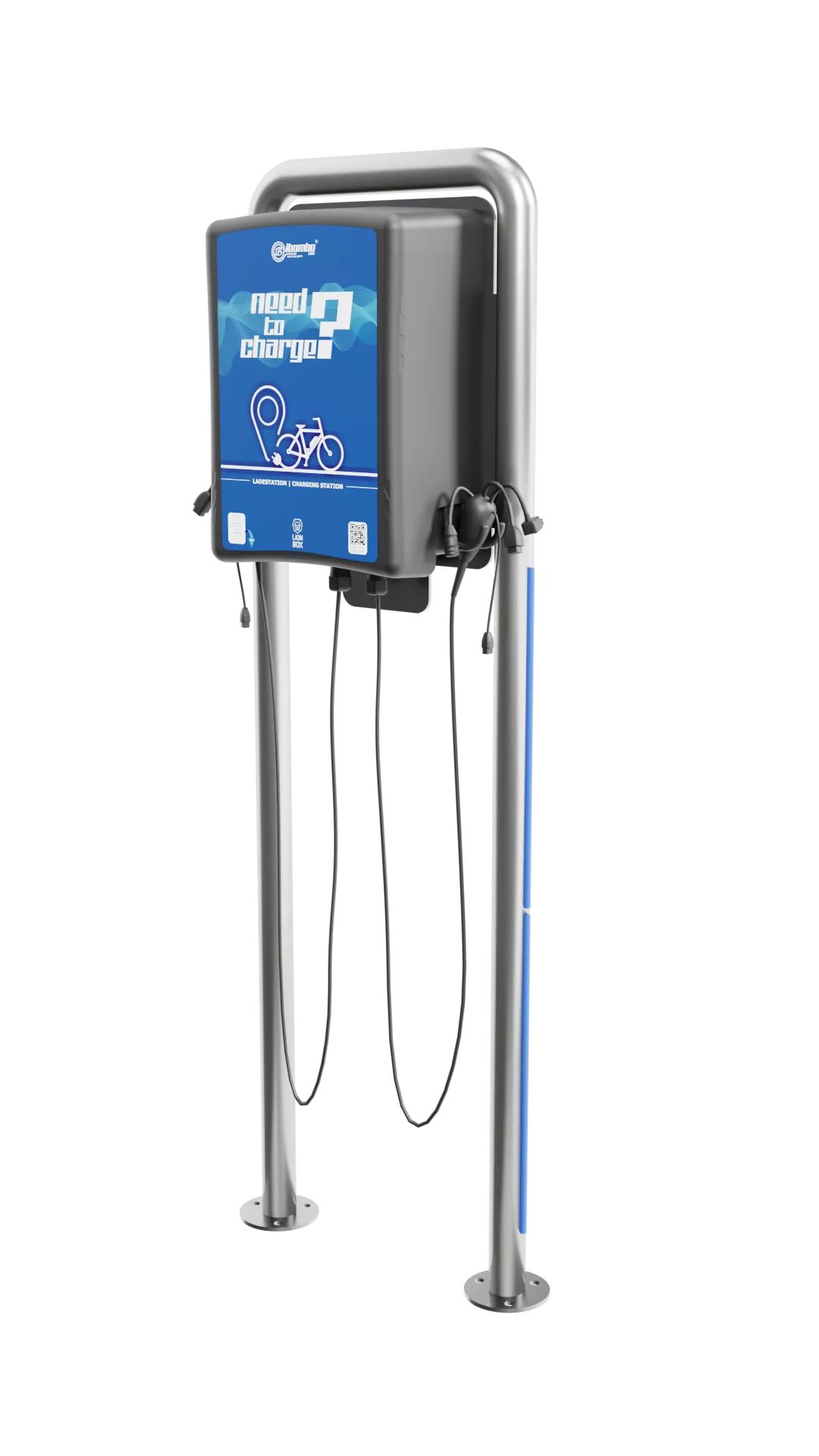

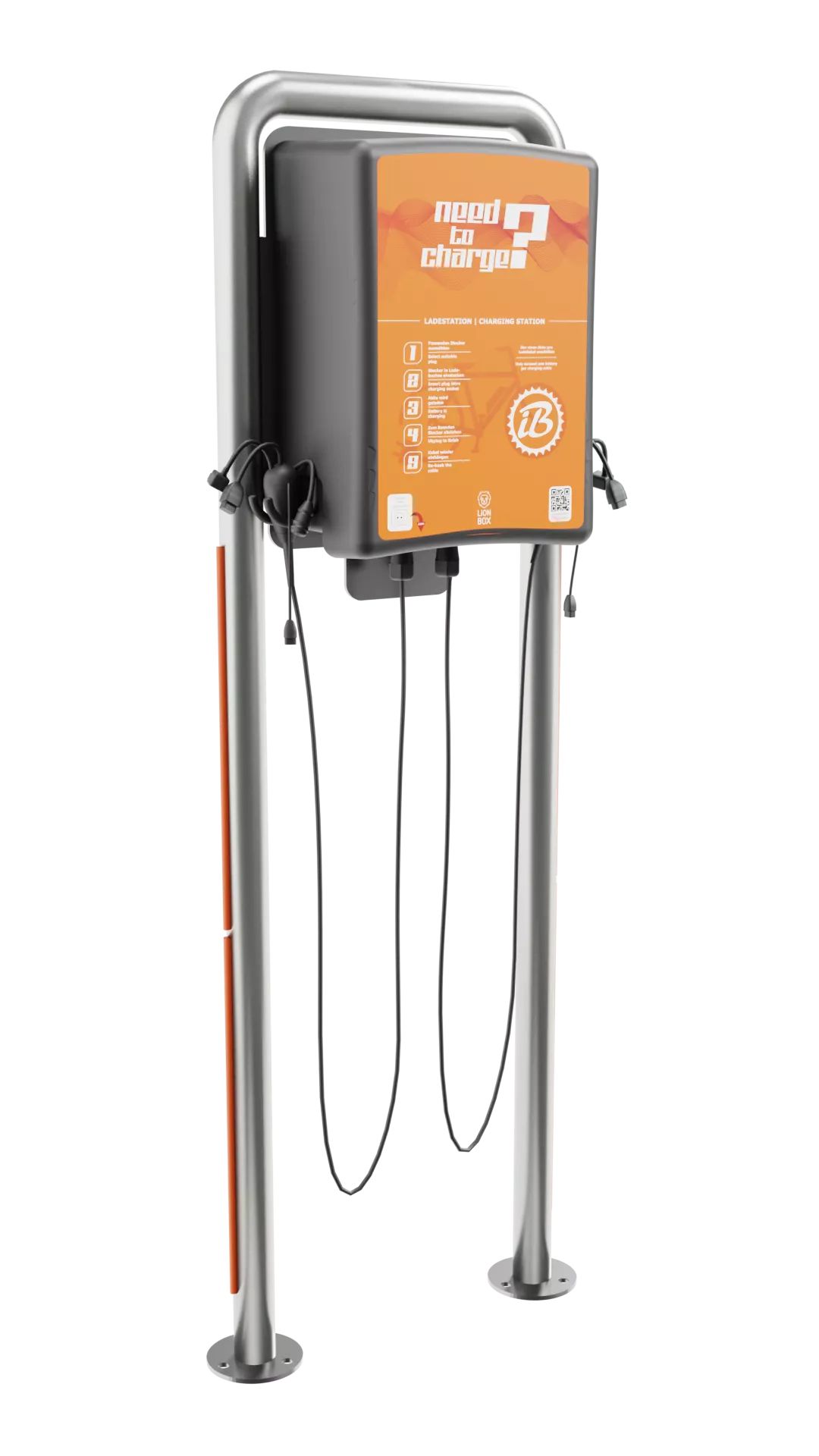

1. LiON BOX with stainless steel stand, silicone protected

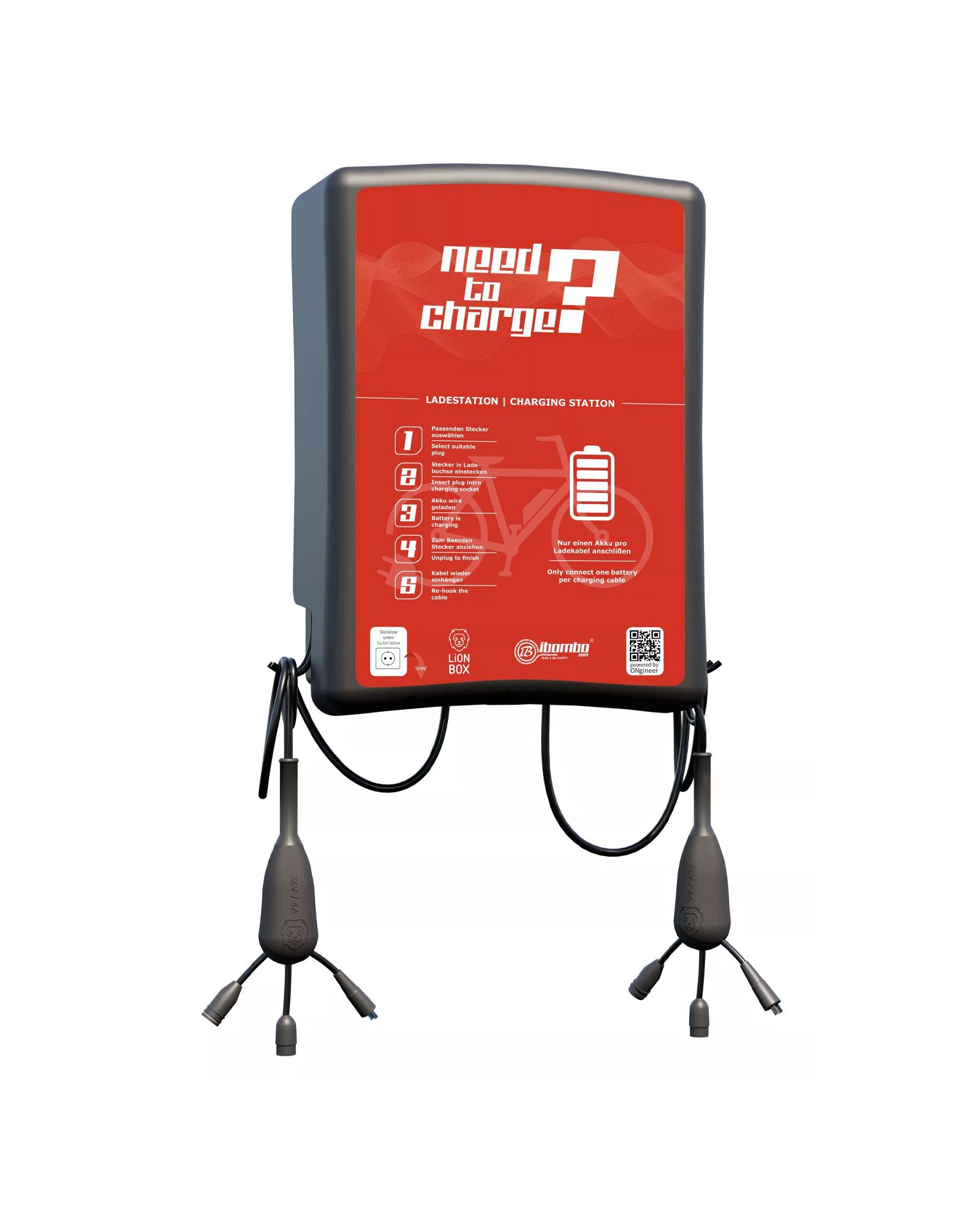

2. LiON BOX without stand,
No more loose chargers and messy cables!
Perfect for public spaces such as shopping malls, hotels, libraries, etc.
A safe solution that can be connected to up to four different plugs for direct charging of e-bikes (BOSCH / Rosenberger [BMZ, Brose, Specialized] / Shimano / Yamaha). In addition, the charging station has a 230V Schuko socket for chargers at the bottom of the device.
The robust housing made of high-quality plastic is weatherproof and suitable for both outdoor and indoor use.
Dimensions: 43.5 x 31.5 x 19 cm
Weight: 6.5 kg
Water resistance class: IP54
Direct charging points: 3 points (two cables + Schuko)
Additional charging point: 1 x 230V Schuko socket
4 different plugs: BOSCH / Rosenberger / Shimano / Yamaha
Color and design: freely selectable, included in the price
- Charger: LiON 36V (BOSCH / Rosenberger / Shimano / Yamaha)
- Additional socket: 1 x 230V Schuko
- Automatic pre-charge mode for discharged batteries ("Precharge")
- Installation options: wall, rack or bike charging and service station
- Fast charging with up to 4A current
- Comprehensive protection circuits for safe operation
- Battery protection system by limiting maximum charge
- Robust plastic housing
- Easy installation
- Cable hooks
The E-BIKE module meets European standards:
Directives 2011/65/EU and 2014/53/EU
Standards used: ETSI EN 300 330 V2.1.1; ETSI EN 301 489-1 V2.2.3;
FIND EN 301 489-3 V2.1.1; EN 61439-1:2011; EN 61439-7:2020;
EN 62233:2008; EN IEC 63000:2018
