Escort car / information board

The LED matrix board is used for, for example, escort vehicles, construction site/traffic announcements and other purposes. The design of the screen has focused on design and suitability for road construction site use. The housing structure is light, thin and has mounting rails on the top/bottom surfaces. The screen can therefore be mounted on a roof rack, for example.

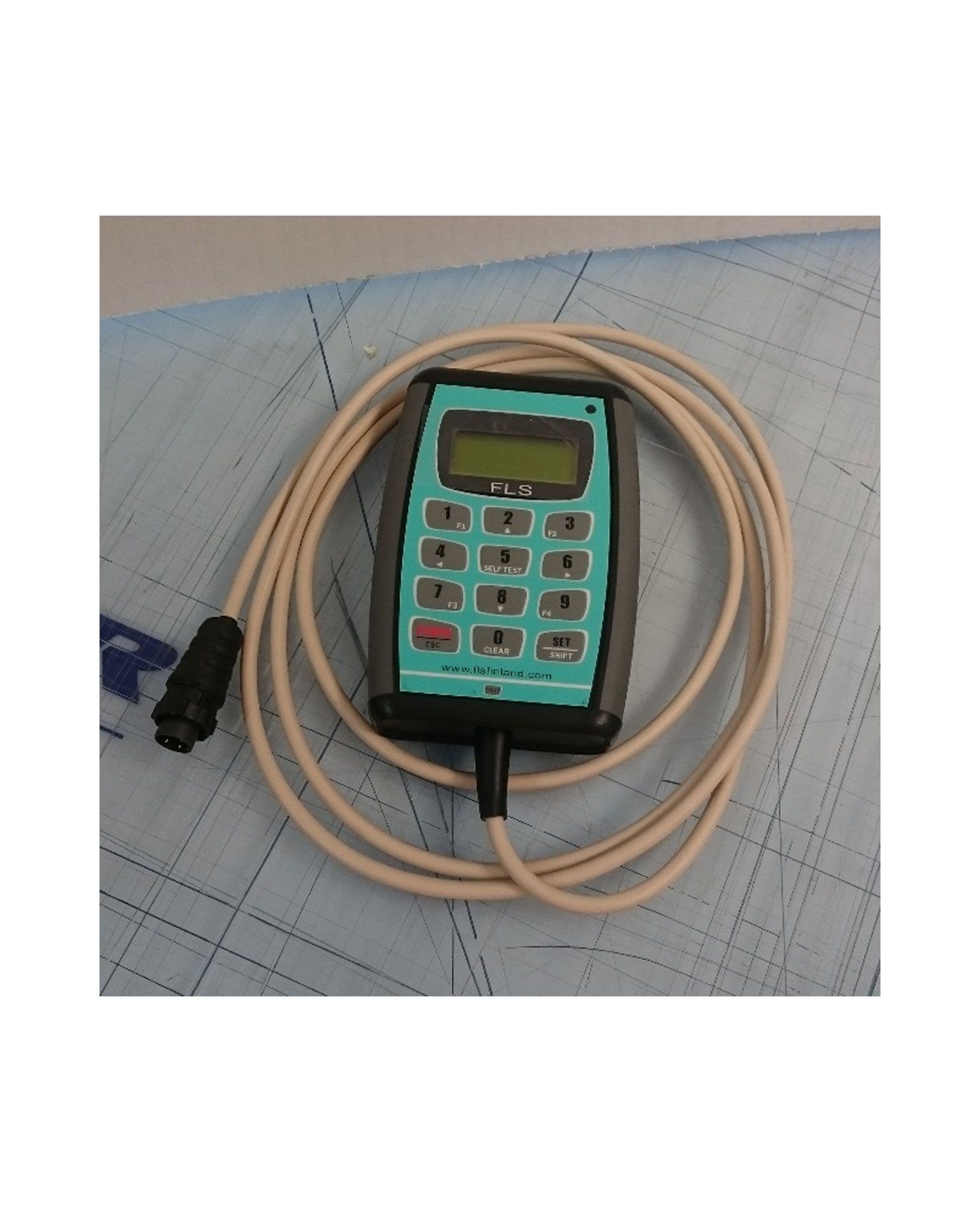

Text messages are programmed on a computer and are stored in the display's memory. The handheld terminal allows messages to be displayed without a computer from inside the car. The handheld terminal has 9 pre-programmed messages for use on the escort car board. The display panel is powered by 12V.

The mounting method is often car-specific and the customer customizes the mounting themselves.

Features:
-For installation on the roof or rear wall of the car
-Yellow LEDs (also available in red or red-orange)
-Wired remote control with display (9 preset escort messages for Finland/Sweden), possibility to program more messages.
-Aluminum profile frame, light but sturdy. Mounting rails.
-Designed and manufactured in Finland

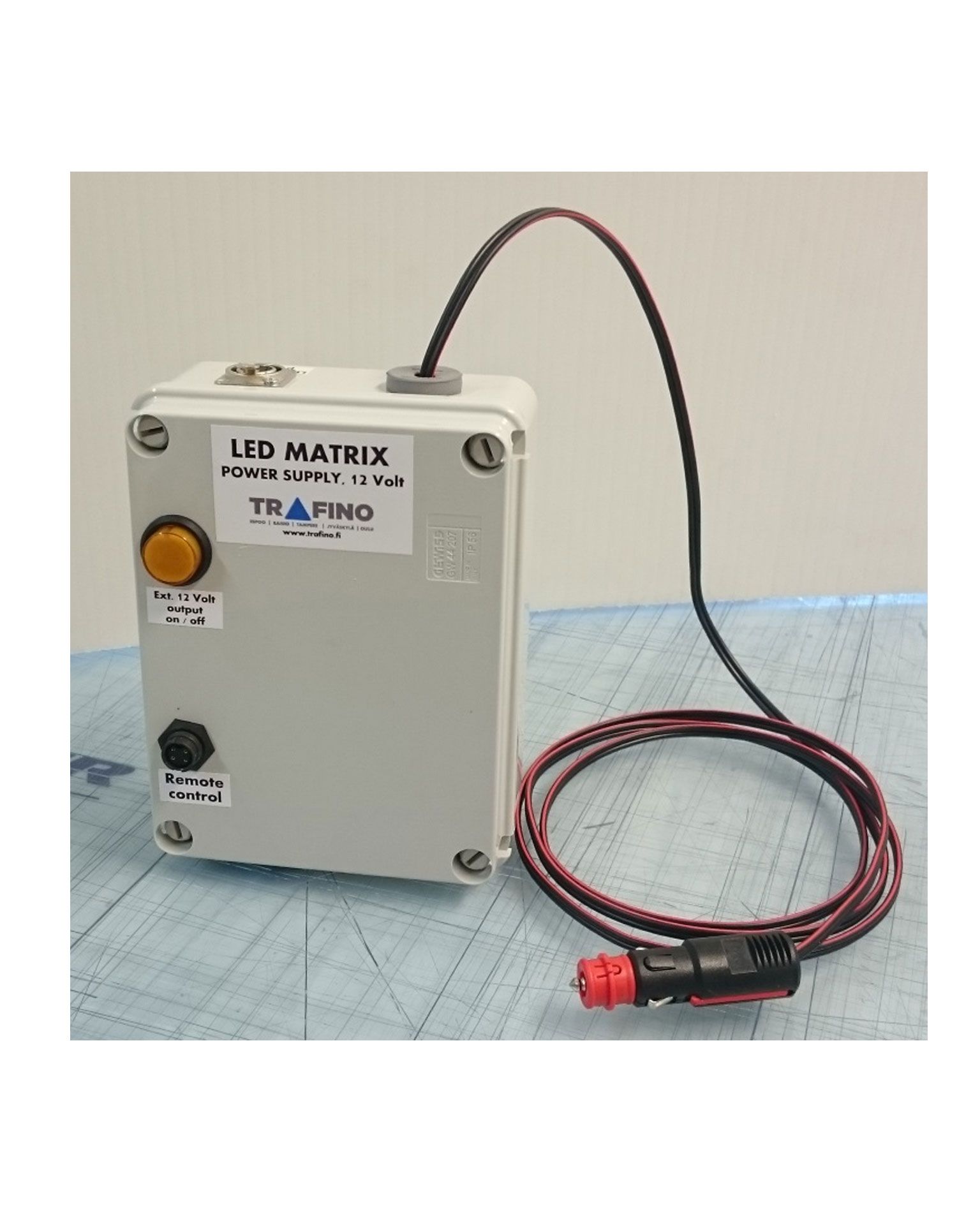

Delivery contents: LED matrix display, power unit, manual dialing device, pre-programmed escort messages (Finland/Sweden), L-brackets, cigarette lighter power supply.

Accessories: RS-485 programming cable, USB adapter, drivers/software

Specifications:
- Number of pixels: (vertical x horizontal) 8 x 80
- Letters (ASCII) on screen at once: 13 pcs
- Number of LEDs: 640 pcs
- Brightness adjustment: Automatic

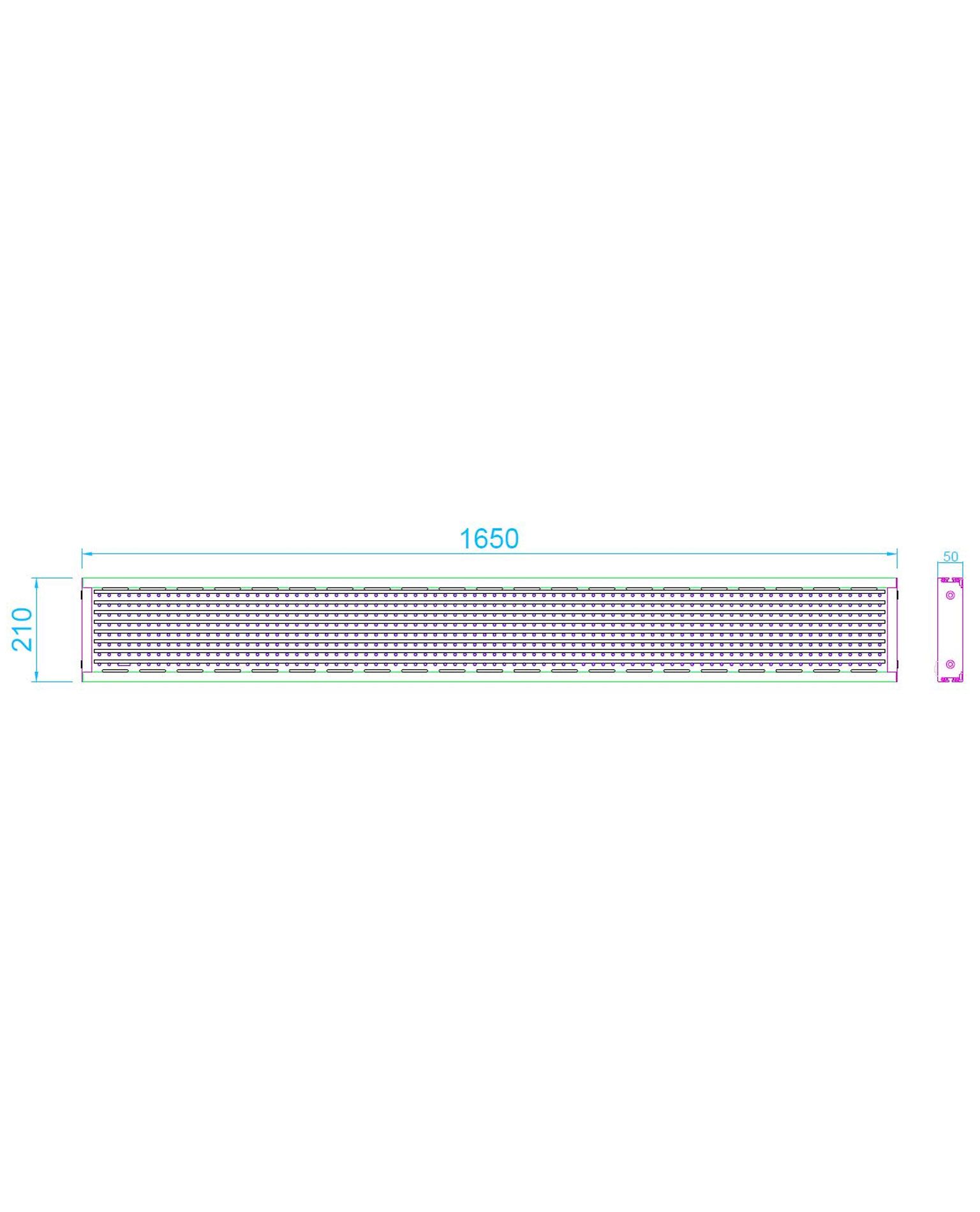

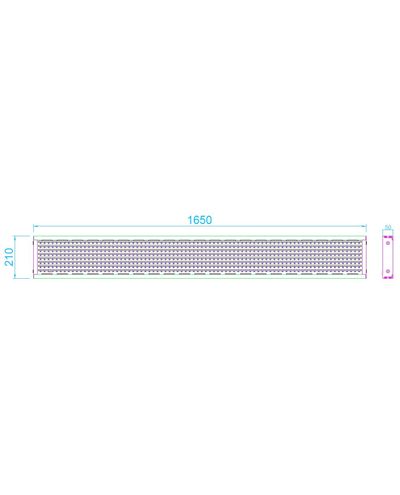

- Case size (HxWxD): 210 x 1650 x 50 mm
- Housing material: Green chrome-plated aluminum
- Housing finish: Powder coated black
- Enclosure protection class: Front IP 53, rear IP 23
- Weight: display panel 7.1 Kg
- Front surface: Non-reflective silk acrylic
- LED expected lifespan: 100,000 hours
- LED brightness: Minimum 2000 mcd
- LED operating temperature: -40 °C - +55 °C
- LED color: Yellow
- Viewing angle, horizontal ±70°
- Viewing angle, vertical ±45°
- Operating voltage: 12 volts
- Connection type (data): RS-485 (GPRS/RS232 on request)
- Power consumption: 55 W (max.), 10 W (avg.)
- Consumption depends on the text displayed and the brightness.
- Approvals: CE, RoHs
- Country of manufacture: FINLAND

Warranty 2 years
