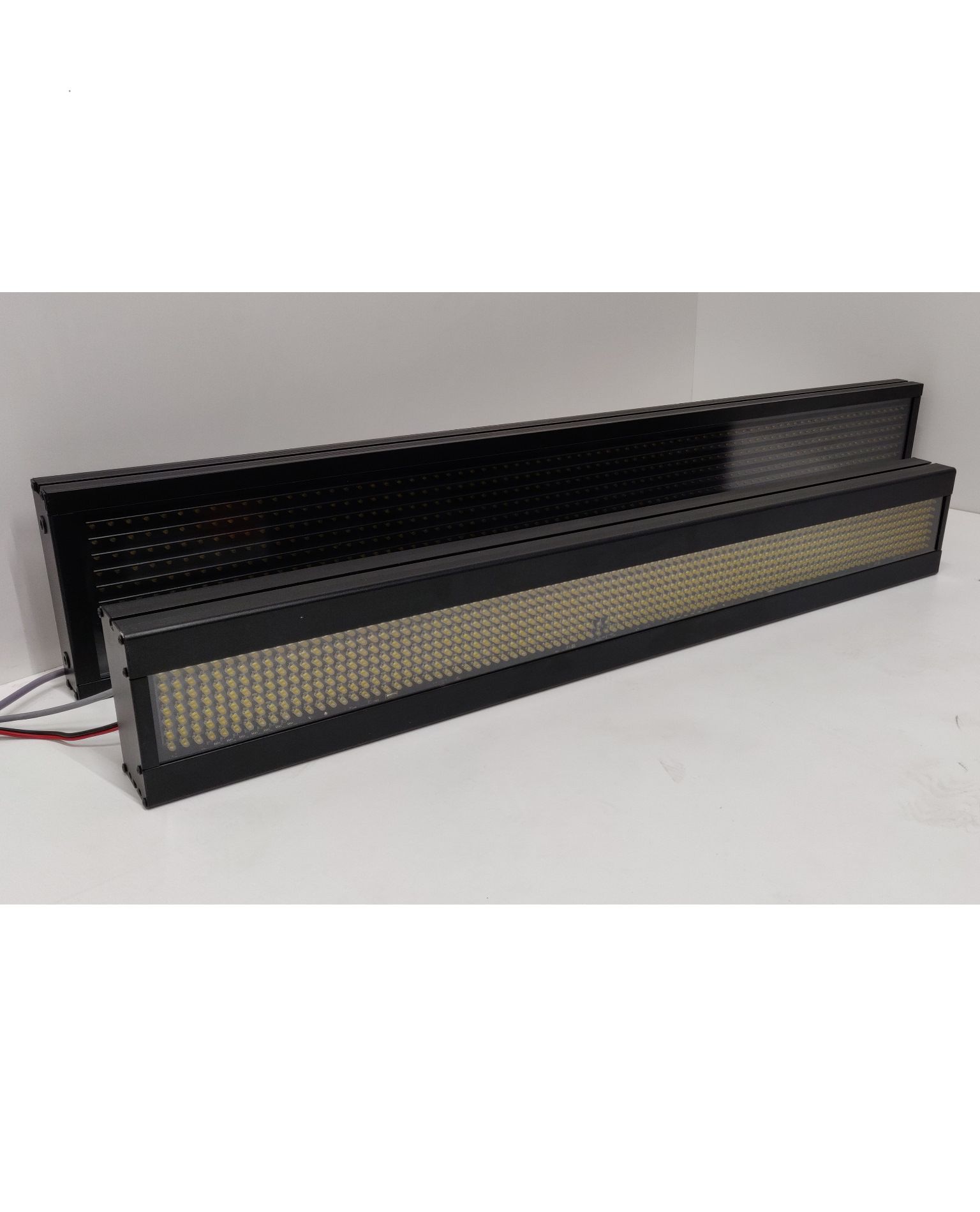

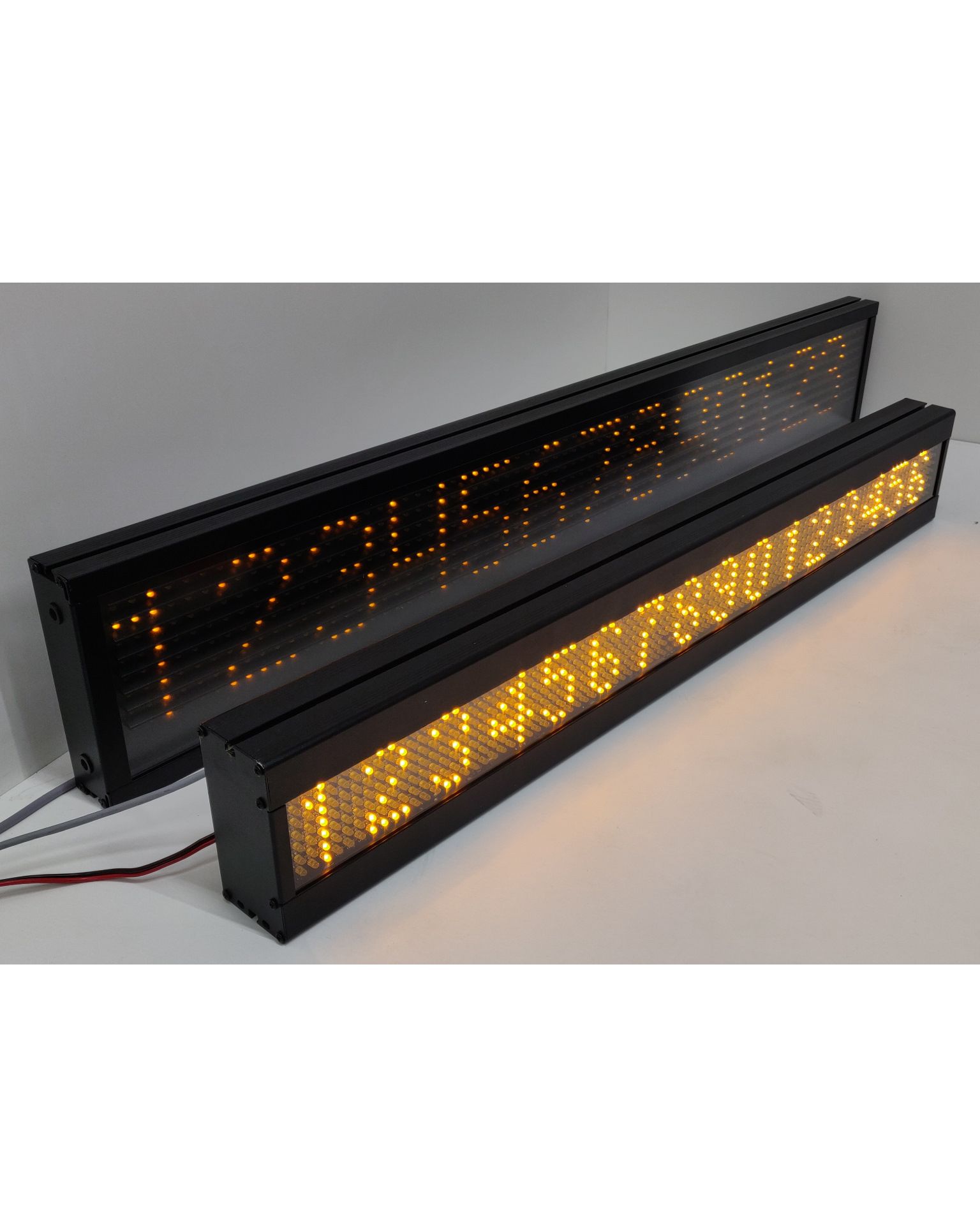

1-row LED matrices

High-quality single-row LED matrices for every application. Different texts or messages can be programmed into the LED matrices according to customer wishes. Messages can be pre-programmed and edited, for example:
- static text
- Scrolling text, right to left
- Scrolling text, top to bottom
- Scrolling text, bottom to top
- Time/date/temperature

The text speed can be adjusted to suit the location.

LED matrices are available in various sizes (LxHxD):
TM748,10: 520x145x70 mm, character height 70 mm, characters on display: 8 pcs
TM796,10: 1000x145x70 mm, character height 70 mm, characters on display: 16 pcs
TM7144,10: 1500x145x70 mm, character height 70 mm, characters on display: 24 pcs
TM7192,10: 2000x145x70 mm, character height 70 mm, characters on display: 32 pcs

TM880,15: 1250x200x100 mm, character height 120 mm, characters on display: 13 pcs
TM880,20: 1650x210x100 mm, character height 140 mm, characters on display: 13 pcs
TM890,15: 1280x290x100 mm, character height 120 mm, characters on display: 13 pcs

TM1648,15: 900x395x100 mm, character height 240 mm, characters on display: 5 pcs
TM1664,15: 1100x395x100 mm, character height 240 mm, characters on display: 7 pcs
TM1696,15: 1550x395x100 mm, character height 240 mm, characters on display: 10 pcs
TM1696,15: 2000x395x100 mm, character height 240 mm, characters on display: 14 pcs

TM1664,20: 1400x425x100 mm, character height 320 mm, characters on display: 7 pcs
TM1696,20: 2000x425x100 mm, character height 320 mm, characters on display: 10 pcs
TM1664,20: 2700x425x100 mm, character height 320 mm, characters on display: 14 pcs

TM1664,20: 1900x450x100 mm, character height 240 mm, characters on display: 12 pcs

LED matrices are always made according to customer wishes, so please contact sales for other sizes.

Options:
- USB programming adapter and software
- Ethernet adapter
- Transmitting Radio 868 / Receiving Radio 868
- Cloud service (Mobile network)
- Temperature sensor
Brightness control: Automatic
Enclosure material: Green chromated aluminum
Enclosure paint: Powder coated black, other colors available on request
Enclosure protection class: Front IP 53, rear IP 23
Front surface: Anti-reflective silk acrylic
Expected LED lifespan: 100,000 hours
LED brightness: Minimum 2000 mcd
LED operating temperature: -40 °C to +55 °C
LED color options: Yellow, orange-red, red, white*, and green
Horizontal viewing angle: ±70°
Vertical viewing angle: ±45°
Power supply voltage: 110-230 VAC, 50-60 Hz or 12/24 Volt
Connection type (data): RS-232, RS-485, radio or GPRS (others available on request)
PCB protection: Protective lacquered
Approvals: CE, RoHS
Warranty: 2 years
Country of manufacture: Finland
