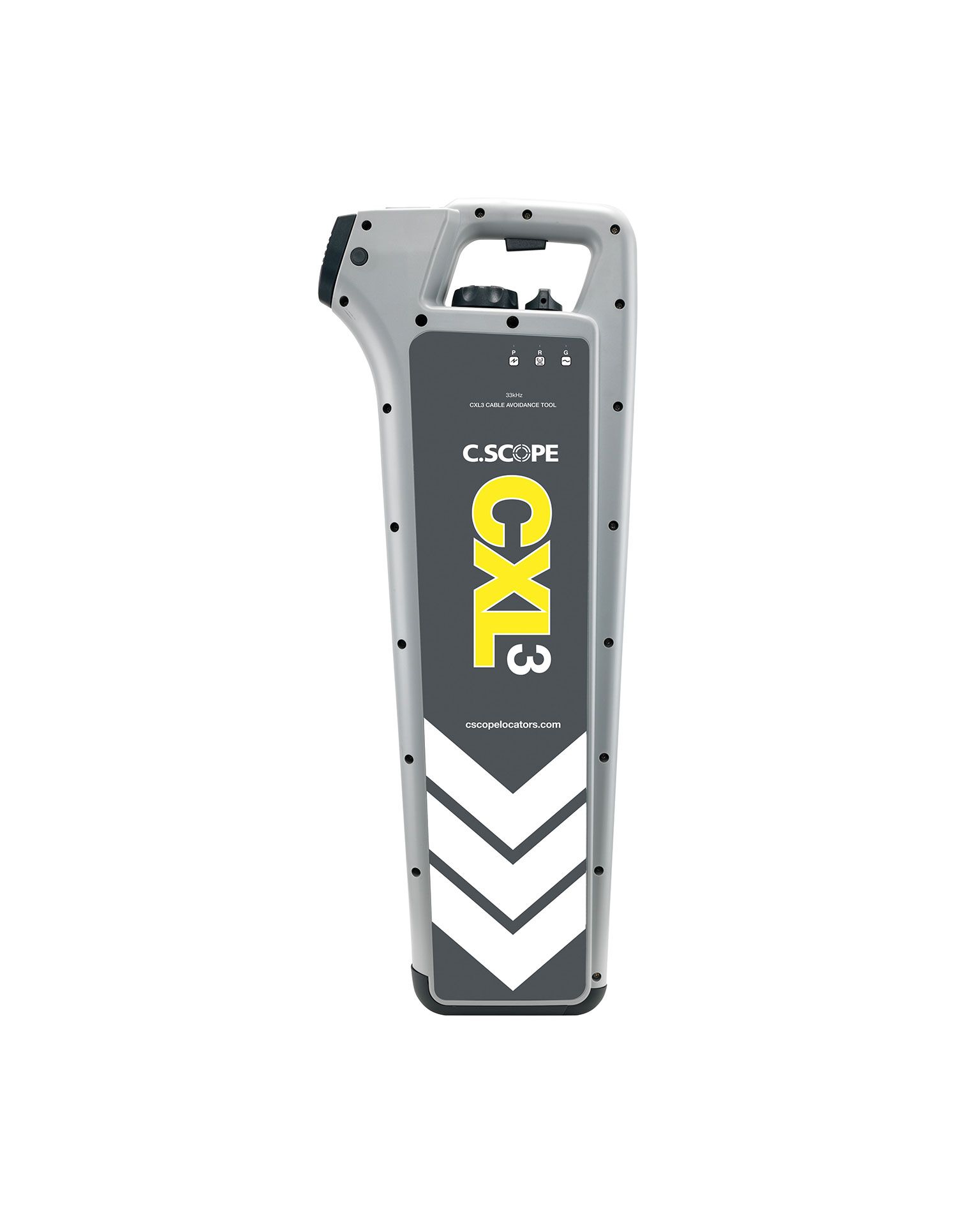

C.Scope CXL3 Cable Locator

The C.Scope CXL3 cable locator is a rugged and affordable industry-standard locator designed to detect buried pipes and cables before excavation.

Damaging cables or pipes during excavation work can be costly and extremely dangerous. The C.Scope Cable Avoidance Tool is the ideal “pick up and go” tool that allows you to quickly and reliably locate buried pipes and cables.

The C.Scope Cable Avoidance Tool has three familiar detection modes (Power, Radio and Transmitter), each offering its own unique advantages. Many users are already familiar with these operating modes.
- Current mode: The fastest way to detect most buried electrical cables by detecting the signal generated by the electrical current itself.g
- RADIO mode: Detects reradiated radio-type signals, which are often found in metal pipes and cables, and allows you to determine their location using just a cable locator.
- Transmitter Mode: Used to detect the signal that the C.Scope SGA3 transmitter is sending into a metal pipe or cable. This mode can also be used to detect the signal of the C.Scope Sondi device for tracing non-metallic pipes.

When combined with the C.Scope SGA3 transmitter and accessories, it becomes a versatile cable and pipe locating and tracing system. The rugged construction, LCD display, removable speaker and easy-to-use finger buttons make this device an excellent tool for all users who need reliable and fast detection of buried services.

Annual recalibration of the CXL3 cable locator is necessary to ensure optimal performance.

Features:
- Power mode: A quick way to detect buried electrical cables using the signal generated by electrical current.
- Radio mode: Detects reradiated radio-type signals from metal pipes and cables.
- Generator mode: Used to detect the signal emitted by the C.Scope SGA3 signal generator. The 33 kHz frequency detection allows the location of underground cables and pipes.-

Clear display (LCD): which shows important information.
- Real Audio response signal:
Provides clear audio notification when an object is detected.

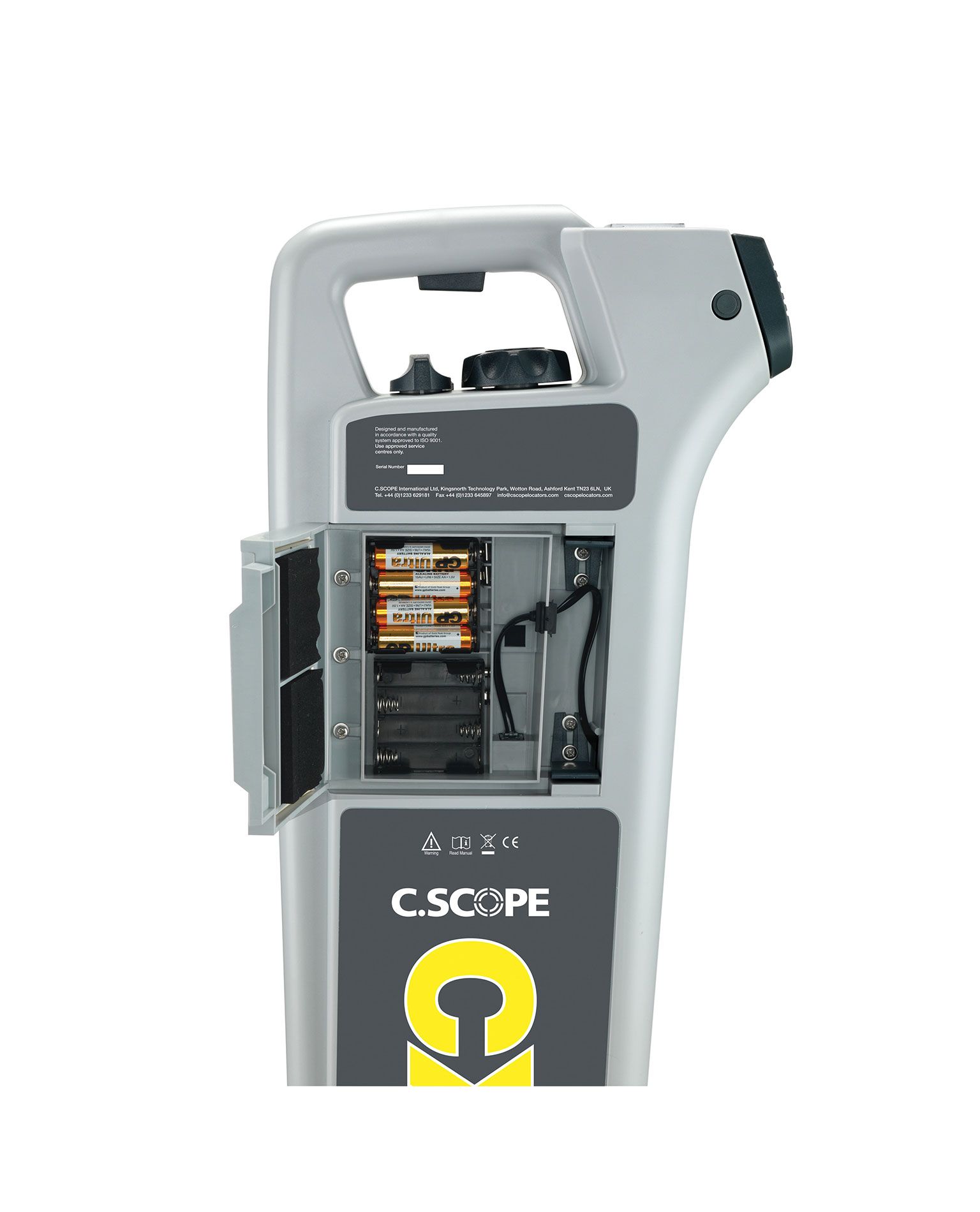

- Spare battery storage compartment: A convenient place to store spare batteries.
- Retractable speaker: Can be removed for use in noisy environments.
- Annual calibration check: Calibration ensures optimal operation annually.
- Weatherproof IP65 protection: Fully weatherproof construction protects against dust and water. Provides additional protection and confidence for the use of the device.

Controls:
- On/Off switch: Spring-loaded trigger switch under the handle
- Mode selector: Three-position switch: P - Power mode; R - Radio mode; G - Transmitter mode

- Sensitivity adjustment: Allows fine-tuning of signal strength
- Beep: Sound indication of the signal
- Removable and user-replaceable speaker module: Easy replacement and removal

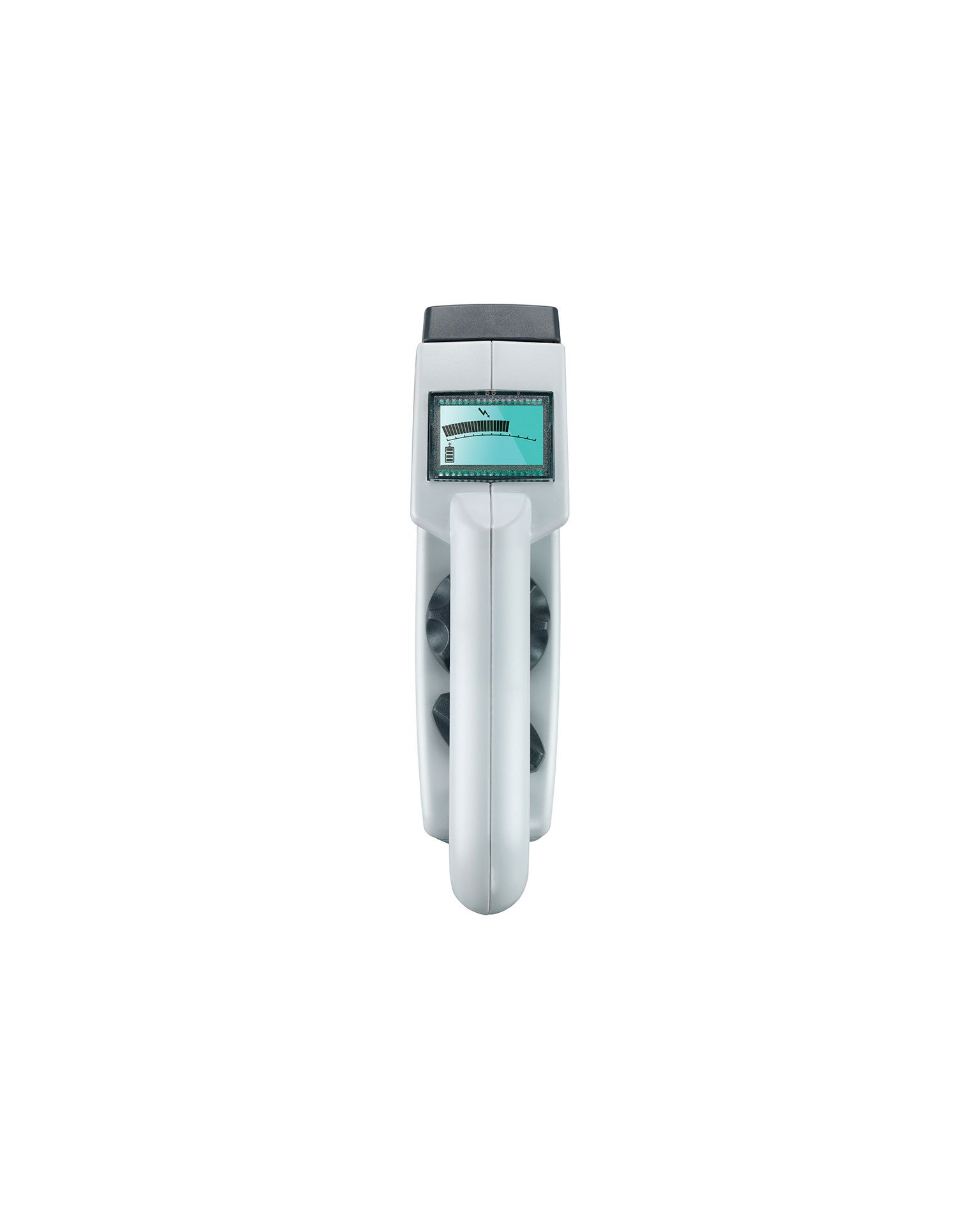

Visual indicator:
- Multi-segment liquid crystal display (LCD) shows:
- Signal strength
- Selected mode
- Battery status

Change:
- Housing: Made of impact-resistant plastic, designed to withstand a 1-meter drop onto a hard surface
- Weight: 2.9 kg
- Dimensions: 720 mm x 270 mm x 63 mm
- Internal 8 x 'AA' (LR6) batteries (alkaline or rechargeable NiMH batteries)
- 40 hours of intermittent use at 20ºC with alkaline batteries
- IP65: Protection against dust and water jets

Warranty: 3 years
