C.Scope CXL4 Cable Locator

The C.Scope CXL4 cable locator represents a significant advancement in cable and pipe detection. It has received new innovative features and improvements that enable it to find even difficult-to-see targets. Working methods have been developed and the effects of human error have been minimized, which improves the performance of the device.

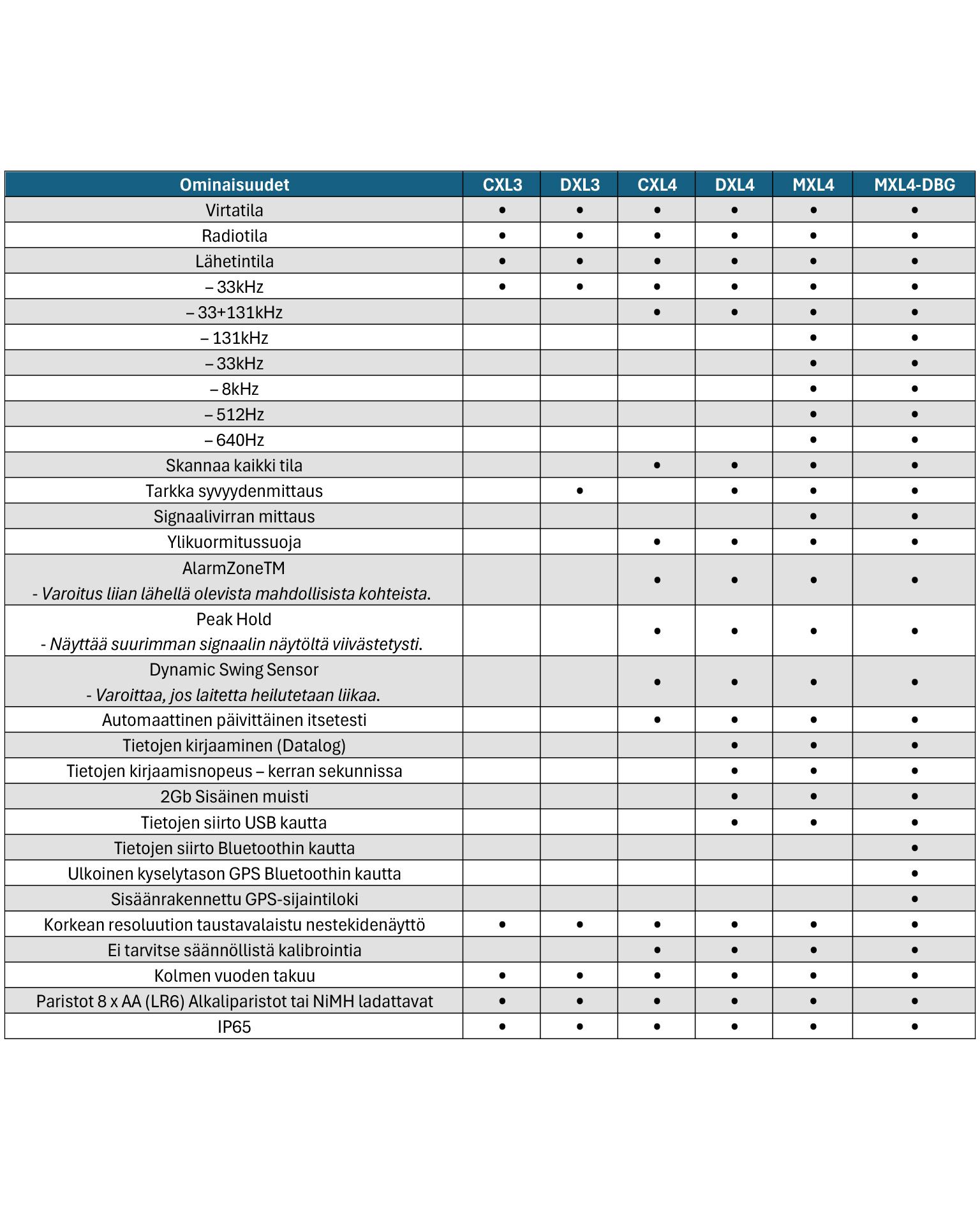

The CXL4 offers four enhanced search modes:
- search for electrical cables with consumption,
- search for long metal objects such as pipes and cables
- search for the transmitter's 33+131kHz signal
- search scans all three other search functions at the same time. It is designed to be easy to use, reducing the need for training. The device supports dual-frequency operation with 33 kHz and 131 kHz signals, effectively improving the detection of multiple buried targets.

The device features optimized sensitivity and noise suppression to ensure efficient operation in high background noise levels. Smart features include AlarmZone™ to alert you to low-lying pipes or cables, Dynamic SwingSensor to warn you of excessive swinging, and PeakHold to help you pinpoint target locations more accurately.

In addition, the CXL4 enables data transfer via USB and offers a PC Toolkit and Relay application for free download, which facilitate graphical analysis of the recorded data.

The device does not require regular calibration as it performs an automatic daily self-test (ADST) to verify operation.

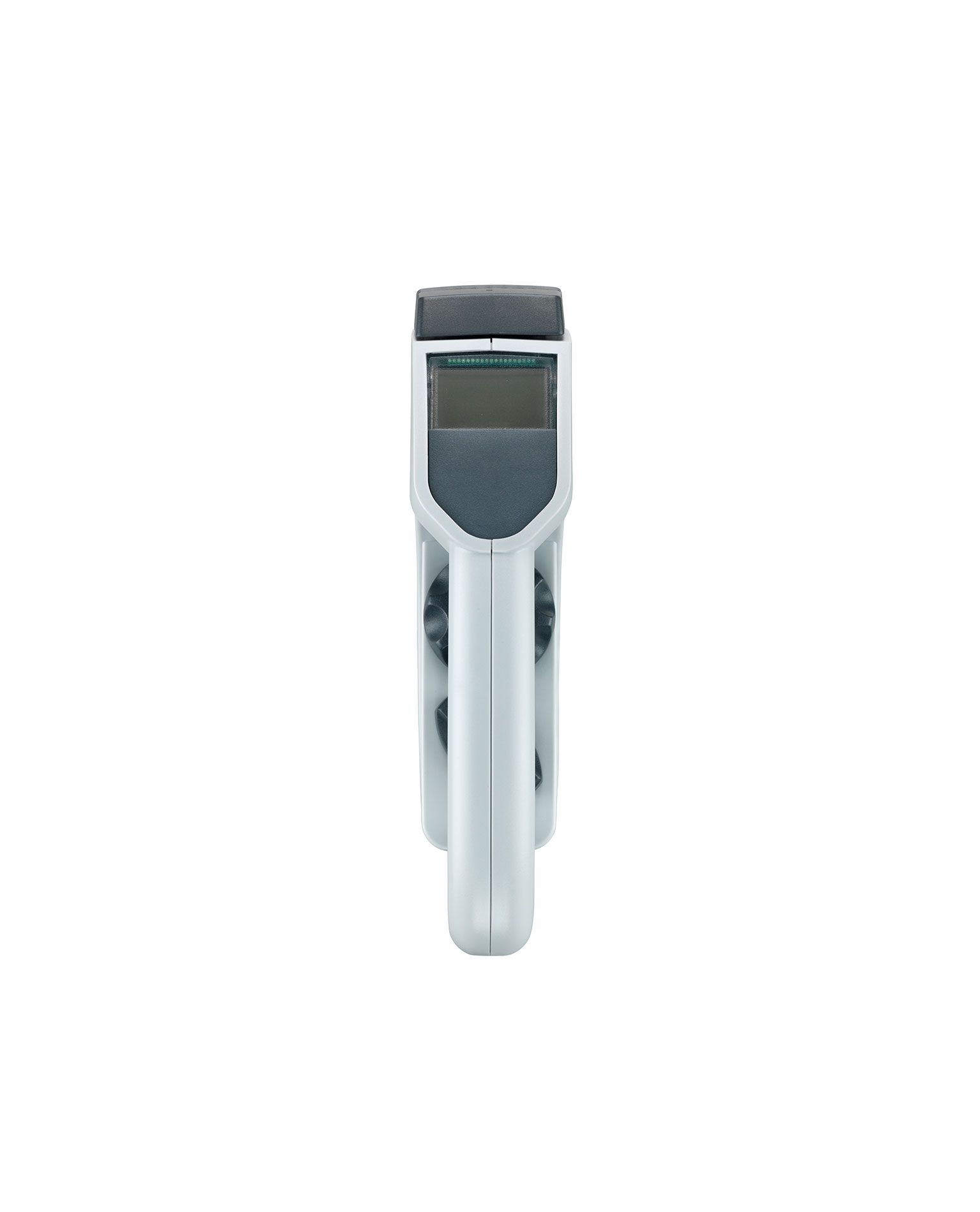

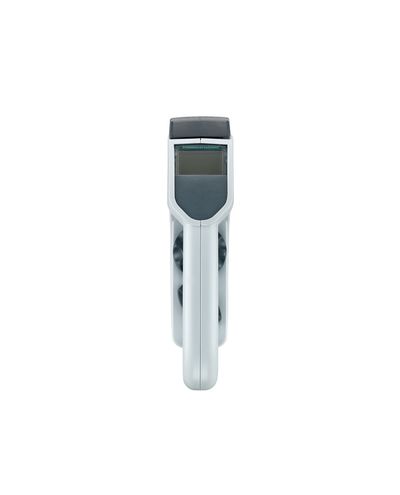

The device is equipped with a large, backlit digital display protected by a polycarbonate lens, clearly displaying all the necessary information. The speaker is removable and the double-walled construction of the device offers an IP65 protection rating against dust and water, making the device durable to use.

Data Logging: Internal capacity to store over 12 months of data (under normal use), logged once per second. Logged data includes time, date, mode, sensitivity level, received signal level, frequency, depth, self-test result and oscillation indicator.

Controls:
- On/Off switch: Spring-loaded trigger switch under the handle
- Function selector switch (four positions): P. Power mode; R. Radio mode; G. Transmitter mode; A. AllScan mode- Sensitivity control:
Adjustable controller to adjust sensitivity in different search modes

Specifications:
- Data Connector: Standard USB Mini B connector on battery case. USB 2.0 compatible
- Self-test: Automatic daily self-test
- Oscillation indicator: Audible signal to indicate incorrect positioning
- Generator Mode Frequencies: Simultaneous 131.072 kHz and 32.768 kHz
- Construction: Housing molded from impact-resistant plastic. Designed to withstand a 1m drop onto a hard surface
- Weight (including batteries): 2.65 kg
- Dimensions: 720 mm x 280 mm x 65 mm

Positioning accuracy: better than 10% of depth
- Depth accuracy: ±5% @ 1m
- Line depth measurement range: 0.1m - 9.99m
- Line depth resolution: 0.01m
- Sonde depth measurement range: 0.1m - 9.99m depending on Sonde type
- Sonde depth resolution: 0.01m

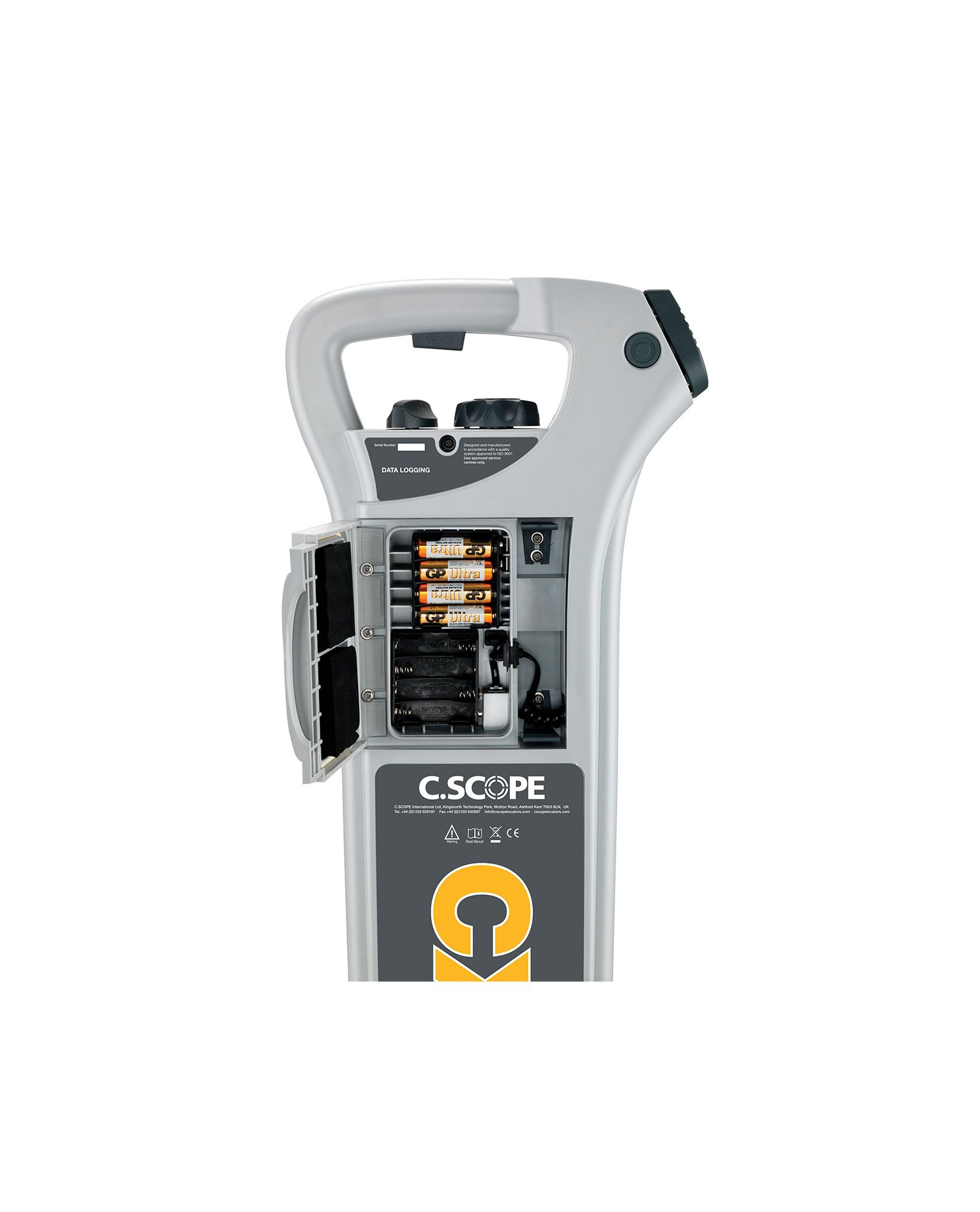

- Battery type: Internal 8 x 'AA' (LR6) cells (either alkaline disposable or NiMH rechargeable)
- Battery life: 40 hours of continuous use at 20ºC when using alkaline batteries
- IP65: Protection against dust and water jets

Warranty:3 years
