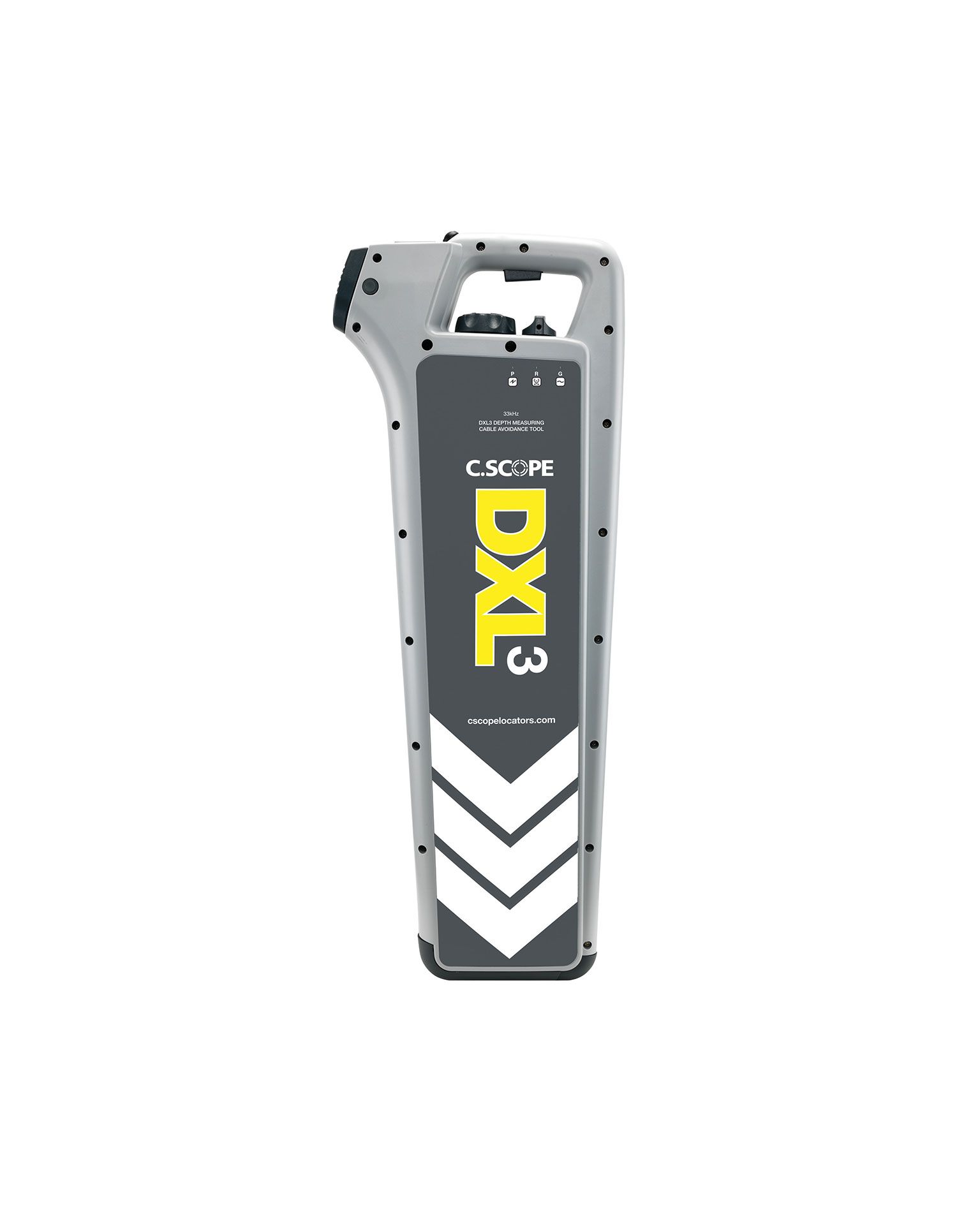

C.Scope DXL3 Cable Locator

The C.Scope DXL3 depth measurement cable locator tool is a durable and affordable industry standard locator designed to detect buried pipes and cables before excavation work begins.

Damaging buried services during excavation is expensive and can be very dangerous. The C.Scope cable locator tool is the ideal and easy-to-use tool for locating buried pipes and cables quickly and reliably, time after time. Safe, simple, fast and reliable.

The C.Scope cable locator tool has three familiar detection modes (Power, RADIO and Transmitter) to choose from. Each mode offers its own specific benefits, and many users are already familiar with using these modes:
- Current mode is the fastest way to detect most buried electrical cables by detecting the signal generated by the electrical current itself.
- Radio mode detects retransmitted radio signals in metal pipes and cables, allowing their location to be determined using just a cable locator tool.
- Transmitter mode detects the signal emitted by the C.Scope SGA3 signal generator into a metal pipe or cable. In addition, generator mode can also be used to trace non-metallic pipes using the C.Scope probe.

Depth Measurement The DXL3 cable locator tool has a simple depth measurement button on the top of the product (for use in TRANSMITTER MODE).

When combined with the C.Scope SGA3 signal generator and accessories, the cable locator tool becomes a versatile and comprehensive package for locating and tracing pipes and cables. The durable construction, LCD meter, detachable speaker and easy-to-use fingertip controls make the C.Scope cable locator tool ideal for workers of all levels who need a reliable way to detect underground services quickly and reliably.

Calibration: The DXL3 cable locator tool requires annual calibration.

Controls:
- Power switch: Spring-loaded trigger switch under the handle
- Function mode selector switch (three-position): - P - Power mode- R - Radio mode- G - Transmitter mode- Sensitivity adjustment
- Depth button: Button for real-time depth display
- Buzzer: Removable and user-replaceable speaker module

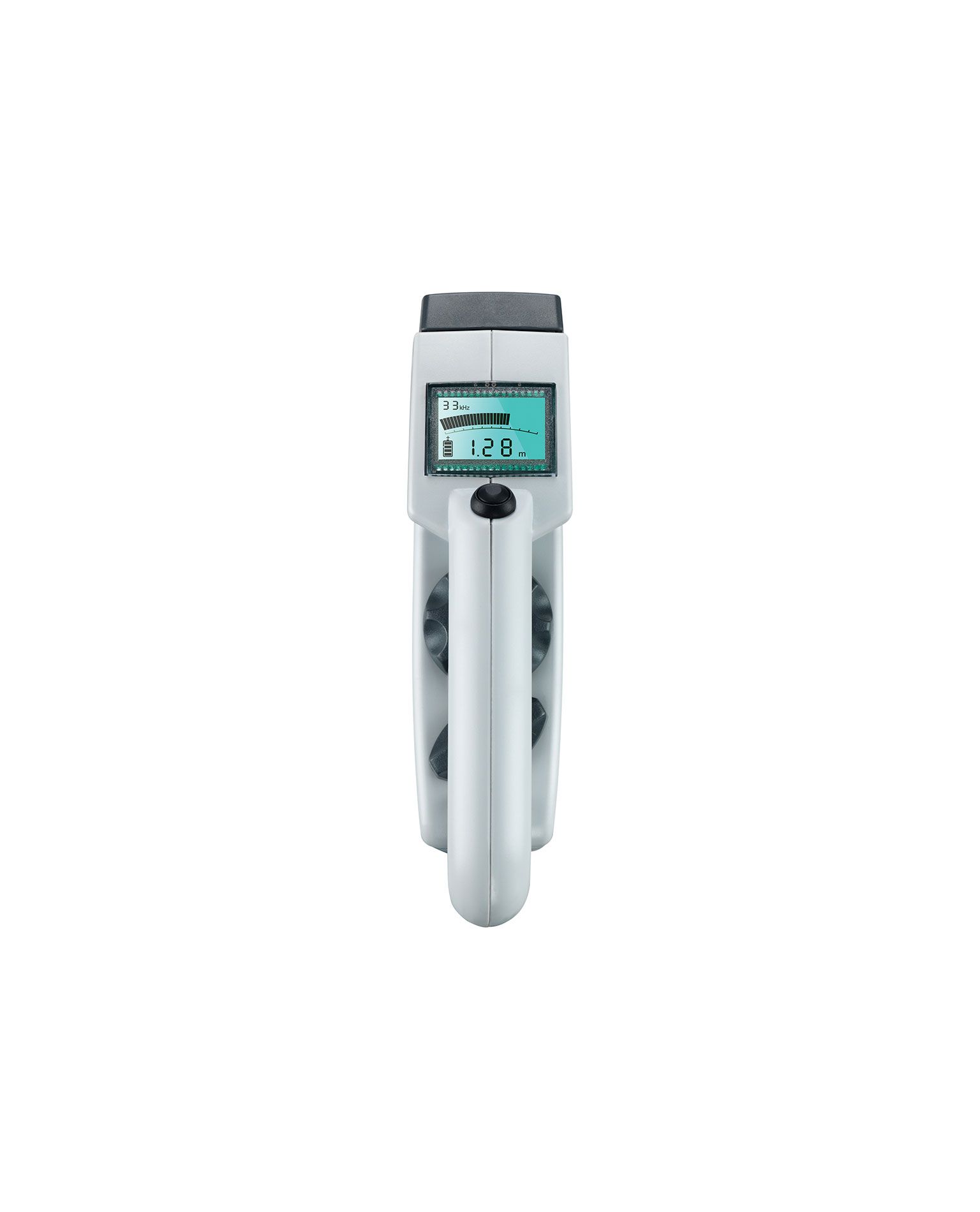

Visual display: Multi-segment liquid crystal display (LCD) that displays the following information:
- Signal strength - Selected operating mode - Battery status - Depth measurement (in transmitter mode)

Specifications:
- Weight (including batteries): 2.9 kg
- Dimensions: 720mm x 270mm x 63mm
- The case is made of impact-resistant plastic and designed to withstand a 1-meter drop onto a hard surface.
- IP65: Protection against dust and water jets

Performance:
- Positioning accuracy: Better than 10% of depth
- Depth accuracy: ±5% @ 1 m
- Lines: 0.2 m - 3 m
- Sondes: 0.85 m - 4.5 m depending on the type of sonde

- Depth accuracy:
- Lines: 0.05 m
- Probes: 0.15 m

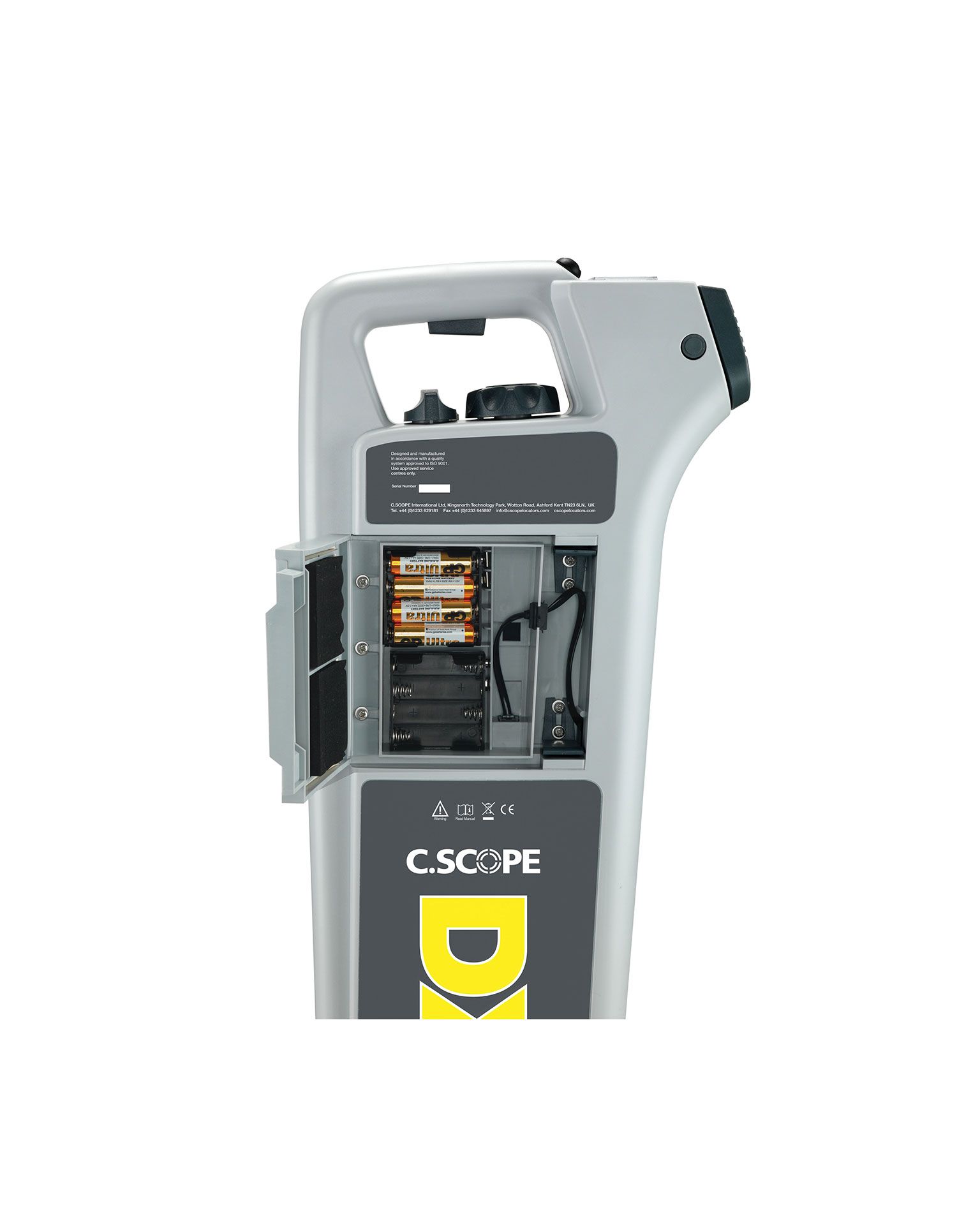

Batteries:
- Type: Internal 8 x 'AA' (LR6) batteries (either alkaline or rechargeable NiMH batteries)
- Battery life: 40 hours of intermittent use at 20°C using alkaline batteries

Warranty: 3 years
