Customizable Variable LED Board

Display features:
Pictograms VMS displays five predefined pictograms. For example, speed limits 30, 40, 50, 60 km/h, "Children in front" and two yellow flashing lights.

Pictogram dimensions:
-Circle diameter 650 mm, size class B according to EN12966 standard.
-Triangle side 700 mm, size class B according to EN12966 standard.
-Turn signals: 2 yellow turn signals, diameter 105 mm.

Activities:
-Pictograms are activated using software.
-Pixel composition: 1 LED.

Monitoring and control software:
-The command program is an Android and Windows application intended for operators who are directly connected to the device via special software on a PC, tablet or smartphone. The operator usually handles only one device at a time, close to the location via Ethernet cable, serial communication RS232 or Bluetooth (up to 10 m).
-The application is delivered free of charge with the devices. It is user-friendly and offers management and maintenance functions.

Mechanical properties.

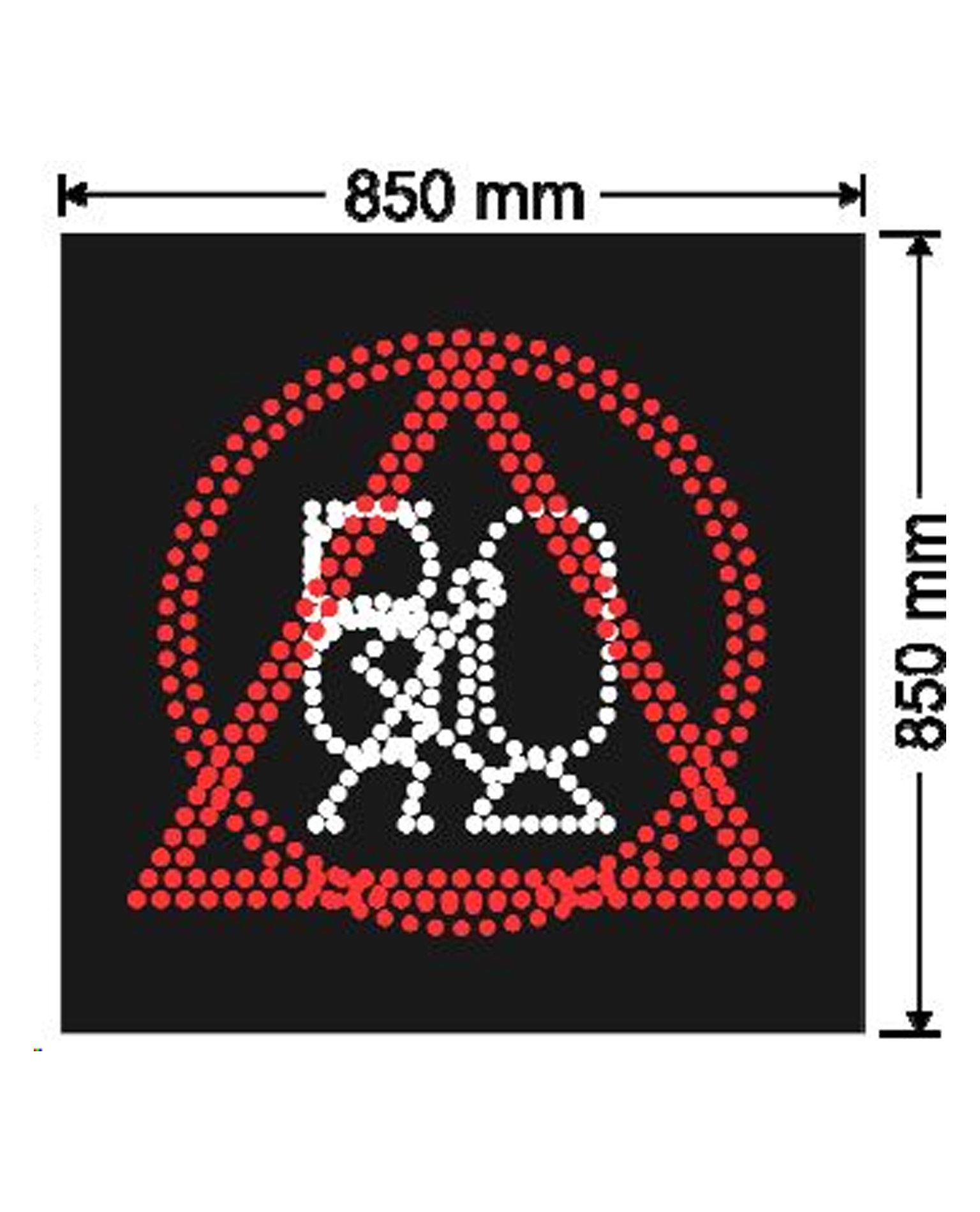

-Holder dimensions (HxW): 850 x 850 mm
-Estimated weight: approximately 22 kg
-Material: Aluminum AlMg3, powder coated, resistant to aggressive climates.

Power consumption:
-Maximum consumption: about 25W
-Power supply
-220VAC
-55Ah battery with charger - BAT/CHA - this option is used if the sign is connected to a 220VAC mains power source from a street lamp. The battery charges at night; during the day (when there is no mains power) the sign is powered by the battery.
