GeoPower Laser machine receiver GP500

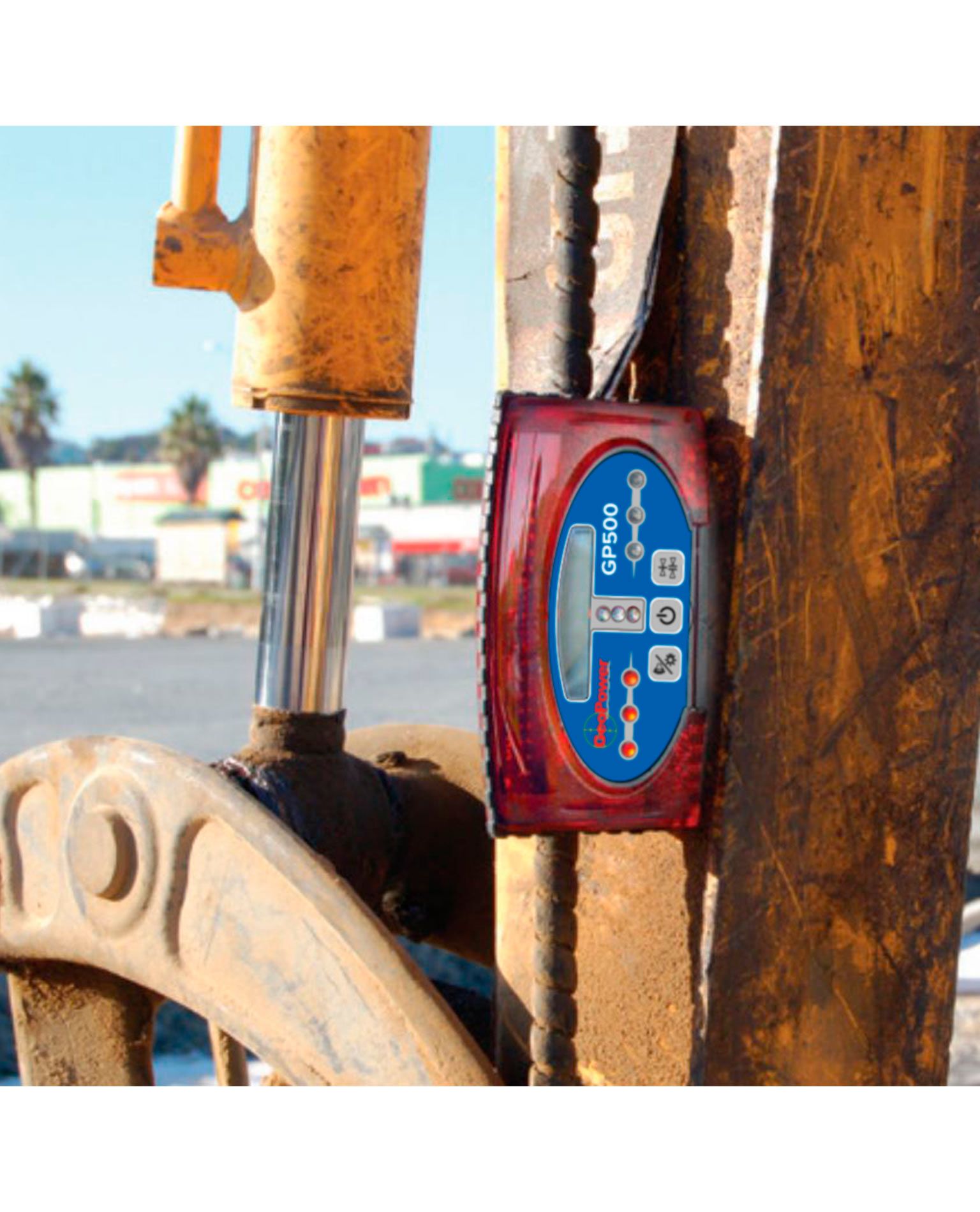

GeoPower GP500 is a multi-purpose laser receiver that can be used, for example, on an excavator boom or on a measuring plate like a normal level receiver. Compatible with all rotating red beam lasers. When used on an excavator, the receiver is mounted on the side of the digging boom with very strong magnets. The machine operator can see the laser level from the receiver's very bright LED lights, or by means of an audible signal. The measurement takes place with the boom and bucket always in the same position, so the eye is on the receiver. Therefore, a cabin display is not required. The long 120mm receiving height and the memory function make it easier to align the laser beam with the receiver. The memory function indicates whether the beam has passed above or below the receiver cell. When used on a level, the receiver is attached to the level holder with magnets, which is mounted on the measuring plate. The level holder is an accessory.
- Very bright LED lights
- Backlit LCD display
- Volume control
- Adjustable accuracy: Flat accuracy 5mm, machine accuracy 10mm and 25mm

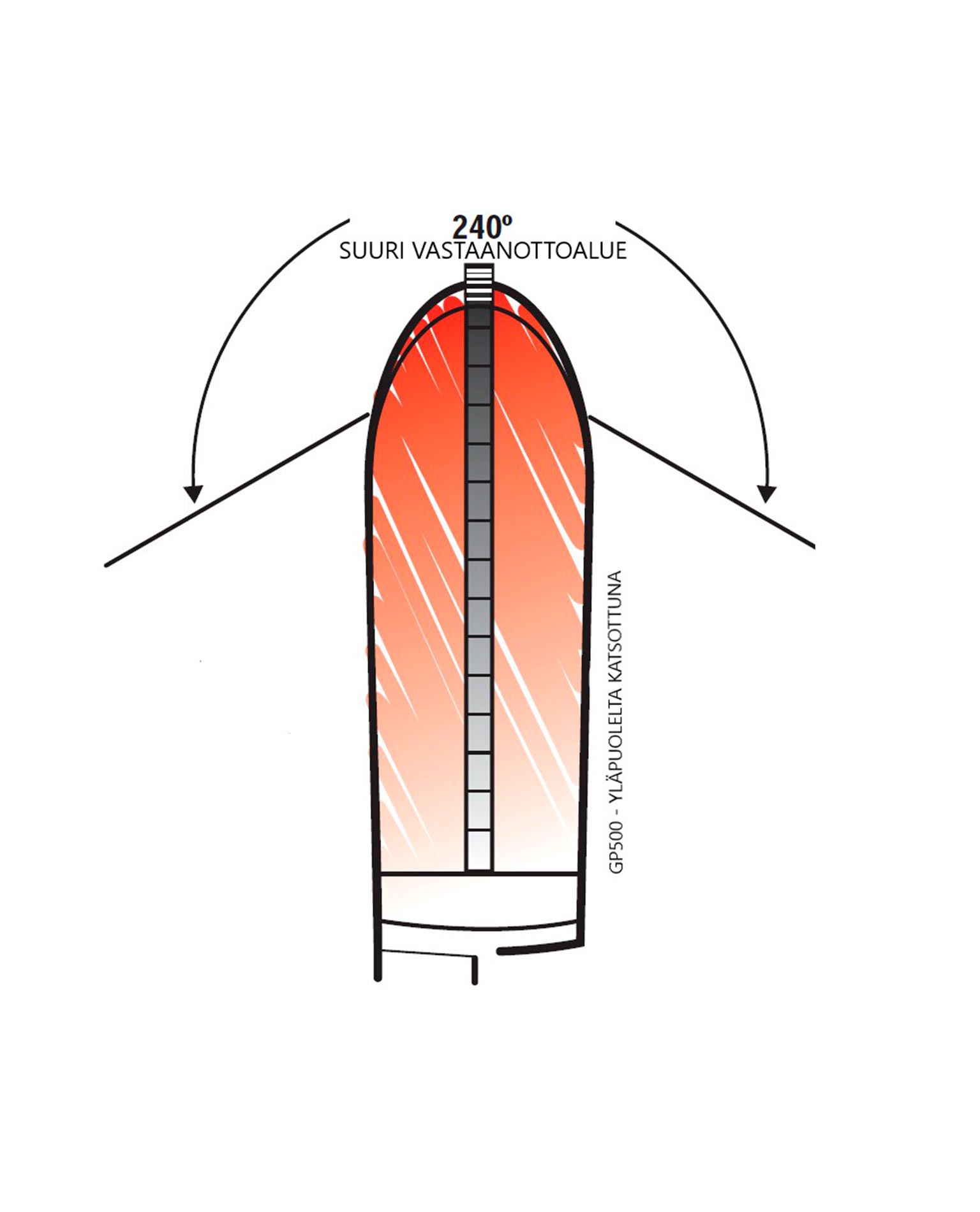

- Laser beam reception range 240 degrees
- 120mm laser beam reception height
- 2 X "AA" - Operating time approximately 160 hours
- Automatic shut-off after 30 minutes
- Splashproof IP56
- Warranty 2 years

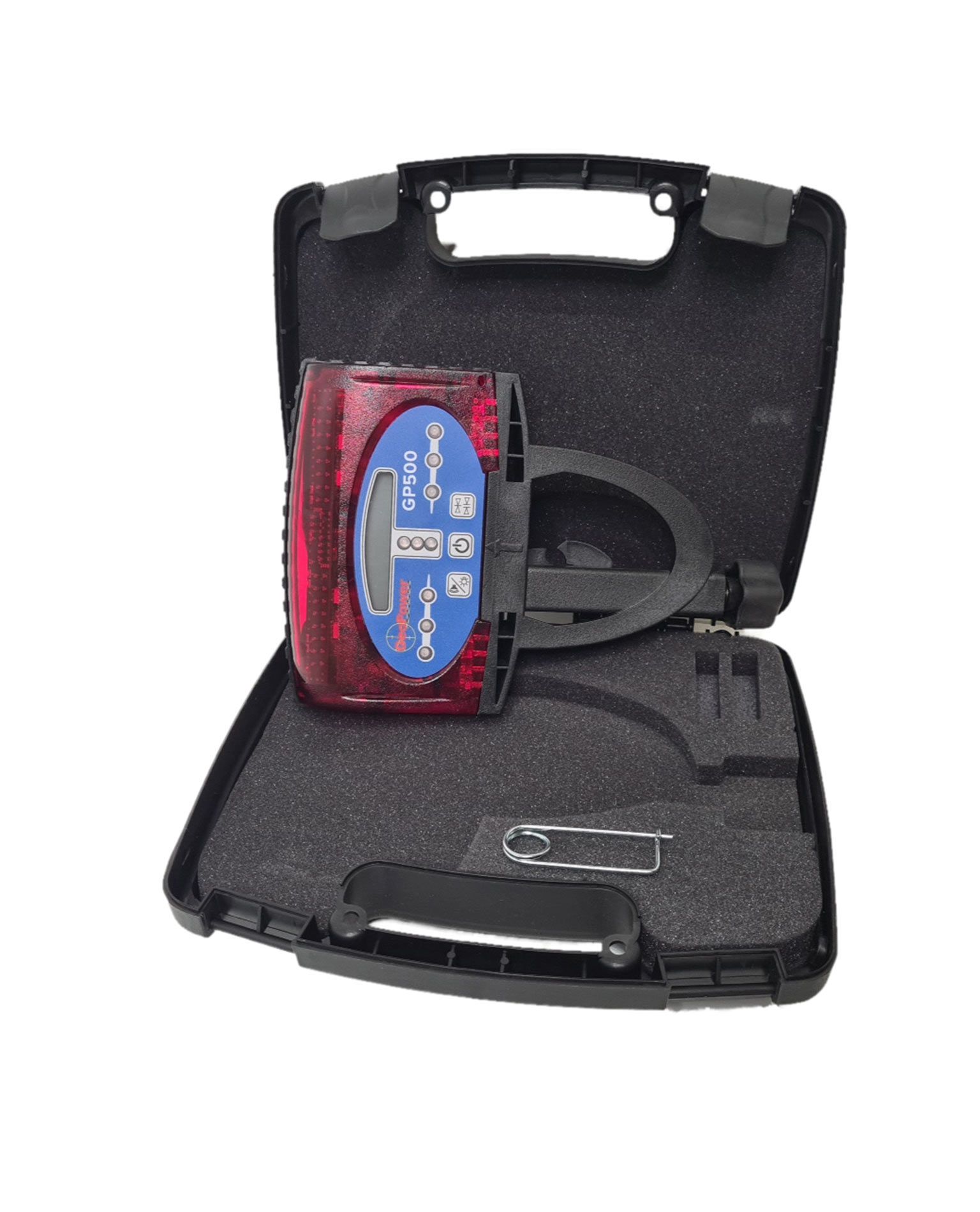

Included: Hard plastic case, GP500 laser receiver, mounting pin and instructions.

The flat holder is an accessory. It must be ordered separately.Flat holder part number: T7200061-1
