By purchasing the package with a receiver equipped with a digital numeric display and radio connection. The recommended receiver is HL760. With the numeric display you can observe height differences or alignment deviations directly on the receiver's display. Measurement errors decrease especially in height difference calculations.
With the slope measurement function the laser plane automatically tilts to the height of the HL760 receiver, after which measurements of sloping surfaces are extremely easy to perform using the tilted laser plane.

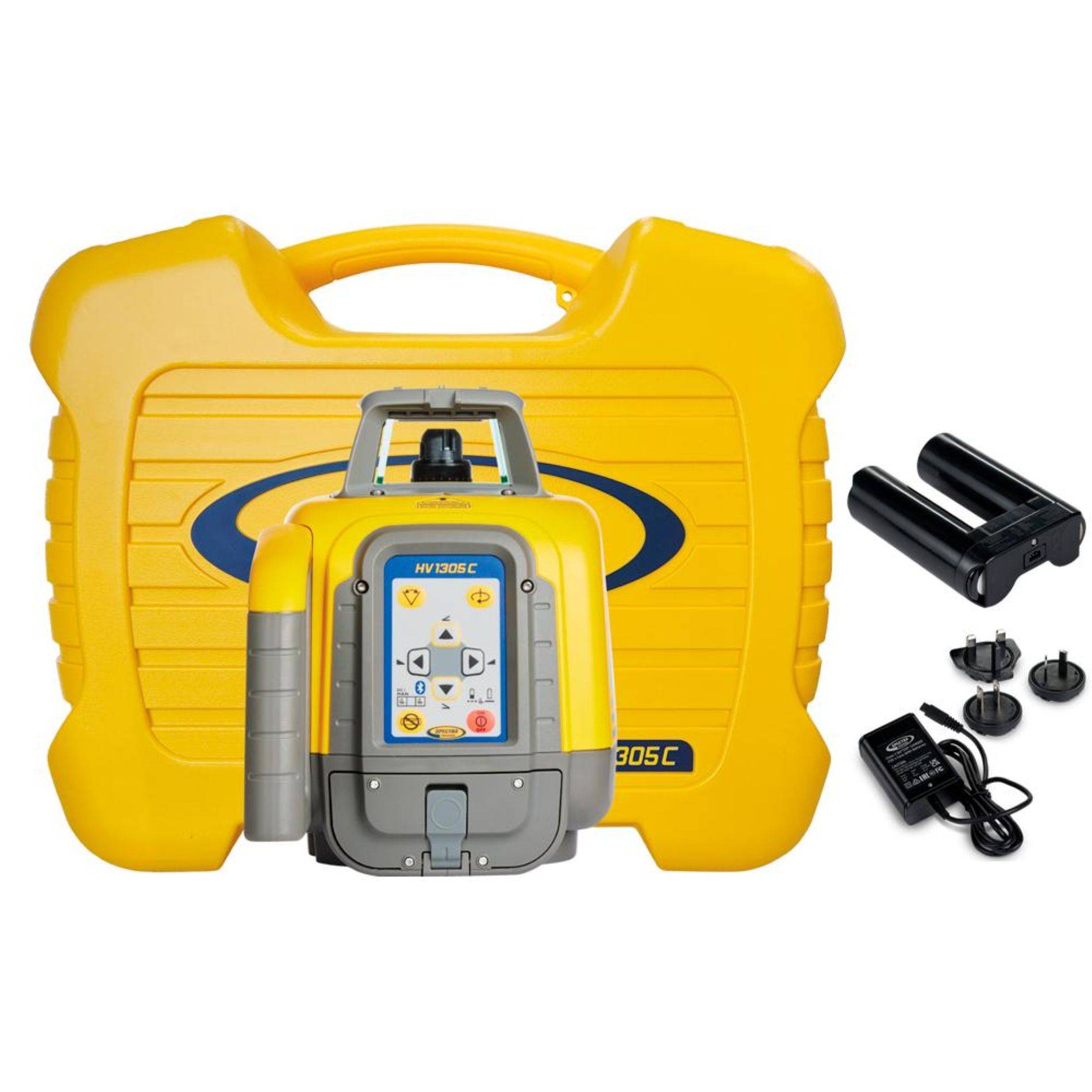

The charger and battery are included as standard equipment and the charger can act as a power source if necessary. The transmitter can also operate on alkaline batteries if needed.
-Leveling alarm: Yes, warns of movement.
-Auto leveling: Automatic in horizontal and vertical positions / Leveling range: 5° /.
-Scanning angle presets: 5°, 15°, 45° and 90°, adjustable in 5° steps.
-Manual mode in one or two directions / with RC1402 remote control from 100 m distance.
-Plane accuracy: 1.5 mm/30 m.
-Operating range diameter: up to 1200 m.
-Beam 600 nm – 680 nm, 5 mW /.
-Laser class 3A/3R /.
-Visibility 75 m /.
-Color: red power beam.
-Rotation speed 0…10… 100… 200…300… 600 rpm.
-Operating temperature : -20 °C… +50 °C.
-IP66.
-Survives a drop from 1 m height.
-Warranty 5 years
